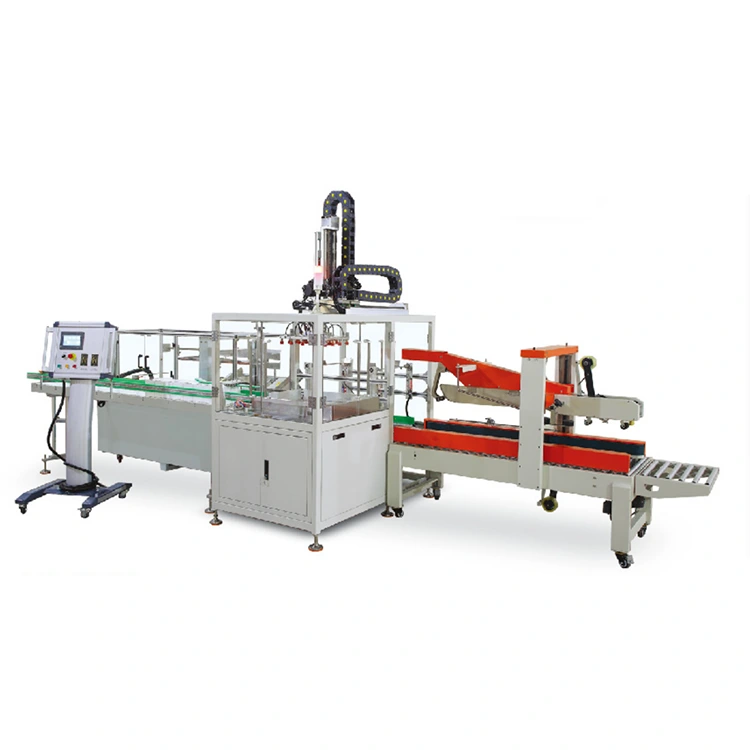

Automatic Case Packing Machine With Mechanical Hand

The Automatic case packing machine with Mechanical hand is an automated downstream equipment that uses industrial mechanical hands as the core execution unit to orderly stack the bagged, boxed, and bottled finished products that have been packaged at the front end into cartons. It connects with the unpacking machine and the sealing mechanism to form a complete packaging production line. It is capable of adapting to the packaging operations of various forms of goods through flexible grasping logic, and is different from traditional push plate rigid packaging equipment. It can handle products with irregular shapes and fragile textures. It is widely used in large-scale production scenarios such as food, medicine, cosmetics, and seasonings.

Infinite Flexibility for Multi-Product Packaging

One packaging system can handle completely different product formats without requiring a dedicated case packer for every SKU. By switching the corresponding program on the touch screen and changing the gripper when necessary, operators can adapt the packing process to bottles, bags, boxes, cups and other packaged products.

This multi-purpose configuration is particularly valuable for manufacturers managing frequent product changes. Instead of investing in separate equipment for each product category, the same Automatic case packing machine with Mechanical hand can support multiple packaging tasks and production programs.

Multi-Axis Robotic Handling

Depending on product weight, speed and placement complexity, different robotic configurations can be selected.

·  4-Axis Delta Robot  – suitable for high-speed picking and case packing of lightweight products such as snacks, boxes, cups and small consumer goods.

·  6-Axis Robotic Arm  – better suited to heavier products, irregular items and applications requiring complex orientation or multi-directional placement.

Multi-axis movement allows products to be picked, rotated and positioned according to the required packing pattern, providing greater flexibility than fixed pushing or loading mechanisms.

Industry Matrix for High-Speed Production

High-throughput industries can benefit from the combination of fast robotic movement and programmable case packing. Typical applications include:

Labor Saving & Faster Return on Investment

Replacing repetitive manual case packing with robotic handling can significantly reduce dependence on skilled packing operators. Depending on the product, speed and working schedule, one robotic case packing station can potentially perform work equivalent to around 3–5 operators in repetitive packing applications.

For overseas manufacturers facing rising labor costs, the reduction in staffing, training and repetitive manual work can improve long-term operating economics. In suitable high-volume applications, the investment may be targeted for a 12–18 month payback period, although the actual ROI depends on labor rates, production volume, working hours and machine configuration.

Integrated Lights-Out Packaging Line

A robotic case packing station becomes even more valuable when integrated with the equipment before and after it. Products can arrive through a sorting and conveying system, enter the robotic picking area, and then be loaded automatically into cartons supplied by the case opening machine.

After filling, cartons can move directly to the case sealer, stretch wrapper and palletizing robot. This creates a continuous flow from product sorting → robotic case packing → carton sealing → wrapping → palletizing, helping manufacturers move toward a highly automated or lights-out packaging operation.

Safety Protection for Robotic Operation

Because robotic arms operate at high speed and have a wide movement range, safety protection is treated as an essential part of the system design. Depending on the project configuration, the working area can incorporate Safety Light Curtains, electronic safety door locks and enclosed aluminum-profile or stainless-steel safety guarding.

These protective measures help prevent unauthorized access to the robot's operating zone and provide emergency stopping when personnel enter a protected area. For overseas projects, safety configuration can be evaluated according to applicable CE and European machinery safety requirements.

Intelligent Self-Diagnostics & Predictive Maintenance

Real-time equipment status can be monitored through the touch-screen interface, giving operators access to operating parameters, alarm messages and fault information. When abnormal conditions occur, the control system can identify the relevant section and issue an alarm to help shorten troubleshooting time.

Maintenance personnel can use operating data and equipment status information to identify components that require inspection before a failure causes prolonged downtime. This approach supports predictive maintenance, helping reduce unexpected production interruptions and maintain more stable packaging output.
