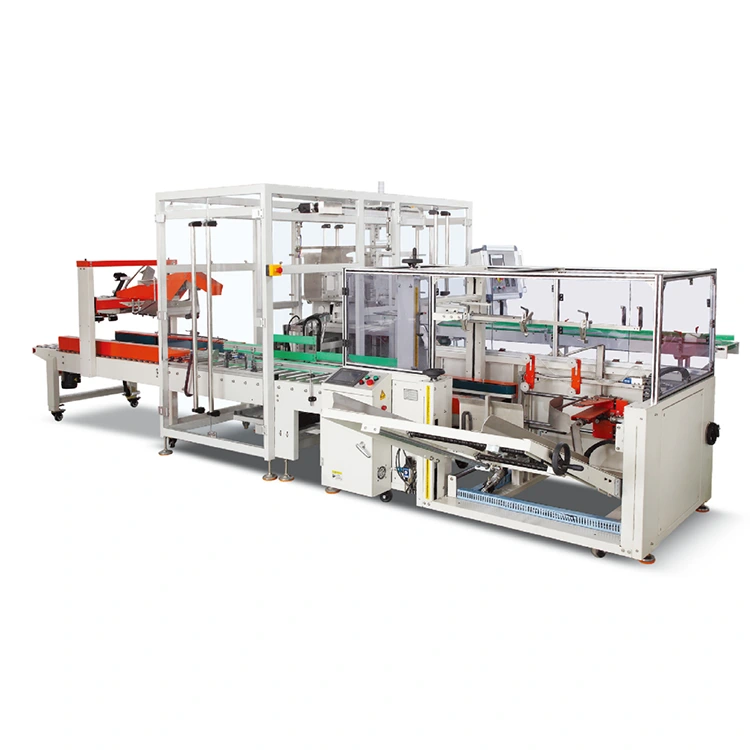

KEDE Automatic Side-Push Type Packing Machine Case Packer is an automatic end-of-line case packing machine that pushes grouped products horizontally into cartons at a stable speed of 1–8 cartons per minute. As a China-based manufacturer and supplier, KEDE builds every side-push case packer with PLC and servo control, missing-product detection, stacking overload protection and customizable pushing tools, so bottles, cans, boxes and flexible bags can be loaded into cases without being dropped, scratched or deformed. Factory-direct pricing, custom carton sizes and full overseas technical support are available.
The Automatic Side-Push Type Packing Machine Case Packer can be connected directly to an upstream box packing machine or cartoning machine to achieve automatic unmanned packaging operations. Products are conveyed and grouped first, then a side push plate transfers the arranged products horizontally into an opened carton. In each station the machine is equipped with missing box detection, product incoming material detection, stacking overload protection and carton position detection, so the whole process is monitored and fully controlled.
The horizontal pushing principle is the key difference from drop-type case packers: products are never dropped from above, which greatly reduces impact damage and keeps the packing line running continuously and stably.
| Actual production capacity | 1–8 cartons / min | |
| Carton size | Min. | 200 × 150 × 150 mm |
| Max. | 650 × 400 × 400 mm | |
| Power supply | AC380V / 50Hz | |
| Total power | 7.5 kW | |
| Air source | 0.6 MPa, ≤1 m³/hour | |
| Overall dimension (L×W×H) | 1200 × 1000 × 1600 mm | |
| Weight | 1000 kg | |
| Control system | PLC + servo, touch-screen HMI | |
| Customization | Carton size, pushing tools, layout and voltage can be customized | |
The Automatic Side-Push Type Packing Machine Case Packer uses controlled horizontal pushing instead of dropping products from above. The smooth pushing movement helps reduce impact, friction and collision during case packing, making it suitable for products with printed surfaces, coated packaging or fragile structures.
Flexible contact components help distribute pushing force more evenly, reducing the risk of scratches, dents and packaging deformation. This makes the system especially suitable for bottled beverages, cosmetic packages, medicine boxes, snacks and other appearance-sensitive products.
The machine adopts a horizontally arranged structure that fits naturally into linear production layouts. Its compact and organized workstation design helps reduce unnecessary floor space while maintaining sufficient room for product conveying, grouping and case loading.
The side-push packing process can also be positioned between upstream product packaging equipment and downstream case sealing equipment, allowing manufacturers to build a continuous packaging line without significantly increasing the overall footprint.
The machine can handle various packaged products, including bottles, cans, boxes and flexible bags. Different sorting tools, push plates and positioning components can be configured according to the product shape and packaging characteristics.
It can accommodate products such as glass or plastic bottles, wet wipe packs, bagged snacks and medicine boxes. For unstable or lightweight products, additional positioning or partition components can be used to maintain product alignment during lateral pushing.
Glass bottles, PET bottles, metal cans and tins arranged into trays or cartons.
Medicine boxes, cosmetic boxes and small cartons grouped into shipping cases.
Bagged snacks, wet wipes, powder sachets and pouch products.
Bottled and boxed household chemical products requiring organized packing.
| Industry | Typical Applications |
| Beverage | Bottled water, functional drinks and other bottled products |
| Pharmaceuticals | Medicine boxes and packaged pharmaceutical products |
| Cosmetics | Skincare, washing and personal care products |
| Snack Food | Bagged snacks, cookies and boxed food products |
| Daily Chemicals | Bottled and boxed household chemical products |
| General Manufacturing | Finished products requiring organized case packing |
It can be integrated with shrink wrapping machines, film packaging machines, bagging equipment, case sealers, wrapping machines and palletizing systems to create a complete automated packaging process.
PLC and servo control systems coordinate product grouping, pushing, conveying and case positioning. Operators can adjust the pushing stroke, speed and packing arrangement through the touch-screen interface, while different production parameters can be stored for faster changeover.
The machine can also monitor missing products and empty cartons. When an abnormal condition is detected, the system can issue a warning or stop the relevant operation to reduce empty pushing, missed packing and potential equipment damage.
Every production line is different, so KEDE offers customization rather than a fixed catalogue machine only:
KEDE provides technical support for machine installation, commissioning, operation and routine maintenance. For customized projects, the machine can be tested with the customer's actual products and cartons before shipment to verify the pushing process and packing arrangement.
Remote technical assistance is also available for overseas customers, covering parameter adjustment, troubleshooting and replacement of common wear parts.
It is an end-of-line automatic case packer that groups products on a conveyor and pushes them horizontally into an open carton. Because products are pushed sideways rather than dropped from above, damage and scratching are greatly reduced.
The standard machine runs at 1–8 cartons per minute, depending on carton size, product arrangement and the speed of the upstream packaging equipment.
Yes. As a manufacturer, KEDE customizes carton size, pushing tools, grouping pattern, line layout and voltage. Standard carton range is 200×150×150 mm to 650×400×400 mm.
Bottles, cans, medicine boxes, cosmetic boxes, wet wipe packs, bagged snacks and similar regular-shaped packaged products. Lightweight or unstable products can be handled with additional positioning or partition components.
Yes. The case packer can be linked with cartoning machines, shrink wrappers, film packaging machines, case sealers and palletizing systems to form a fully automatic end-of-line packing line.
Send us your product type, product size, carton size, required capacity and line layout. KEDE will recommend a suitable configuration and provide a factory-direct quotation.
Tell us your product, carton size and target capacity — KEDE engineers will reply with the right side-push case packing solution.
