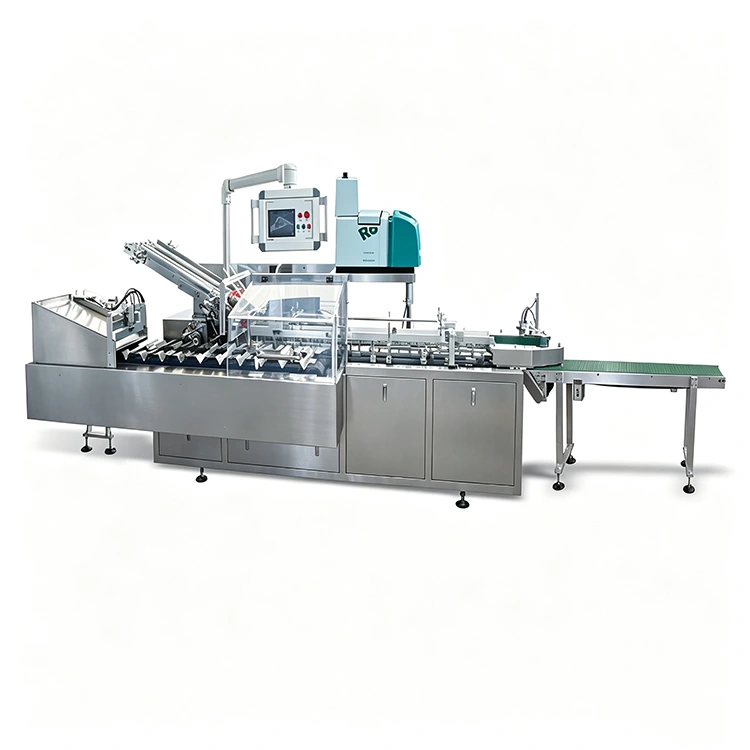

The Automatic Bag Packaging Machine connects with the rear process of the rewinding machine and automatically completes the entire process of suctioning the box, feeding the cylindrical material, pushing it in, folding the flap of the paper box, and discharging the finished product. It replaces manual filling of the paper box and is the core supporting equipment for daily chemical packaging and kitchen consumables production lines.
|
Power supply |
380V/50Hz |
|
Power KW |
7.5Kw |
|
Speed |
30-50 box/min |
|
Film roll size |
Length:250-350MM Width/height: 35-60MM |
|
Weight |
1200kgs |
Unlike conventional packaging equipment designed mainly for square or flat products, this Automatic Bag Packaging Machine is specially configured for cylindrical roll materials. The feeding and guiding structure helps separate plastic film and aluminum foil rolls into groups before transferring them to the filling position.
Flexible limit blocks on the conveying track can accommodate rolls with different diameters and lengths within the specified range. The arc-shaped sorting and guiding structure helps prevent rolls from becoming trapped or squeezed during continuous transportation.
For multi-roll packaging, the sorting mechanism maintains an appropriate spacing between individual rolls before they enter the box, helping prevent material deformation and improving the consistency of the finished package.

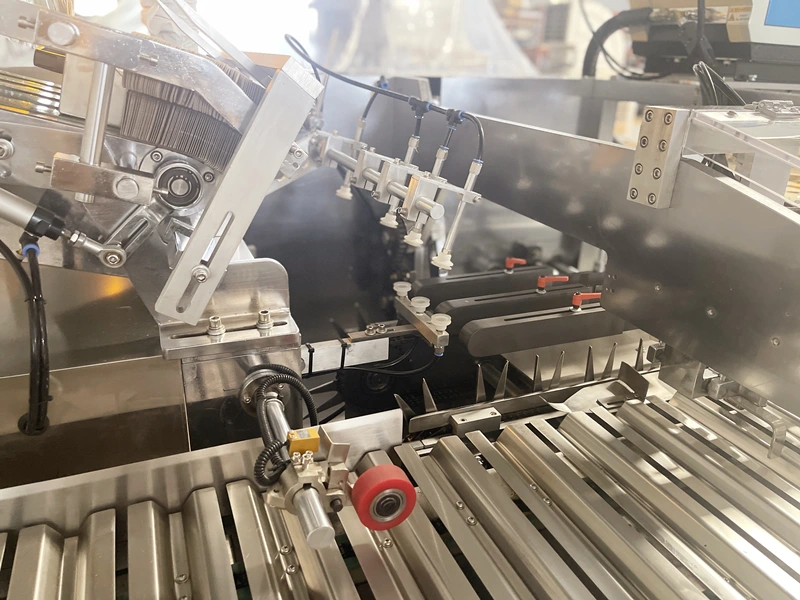

The paper boxes are automatically picked from the box storage rack using a vacuum suction cup system. The boxes are opened and formed before being transferred to the filling position.
Once the roll materials are correctly arranged, the guiding slide directs them smoothly into the formed box. This automated loading method provides more consistent positioning than manual placement and is particularly useful for production environments handling multiple rolls per package.
The Automatic Bag Packaging Machine is also equipped with a lack-of-material and box detection function. When insufficient material or empty boxes are detected, the system can issue an alarm and stop the relevant operation, helping reduce empty-box packaging and defective products.
The material transfer system incorporates a collision-avoidance function to reduce interference between rolls during transportation. This is particularly important when several cylindrical rolls are being transferred together.
By controlling the feeding speed, material spacing, and positioning sequence, the equipment helps maintain orderly movement from the feeding section to the box-loading station. This contributes to more uniform finished packages and reduces material displacement inside the box.
The Automatic Bag Packaging Machine allows different specifications to be adjusted and operated within the applicable range of the same equipment. Parameters for different products can be configured through the touchscreen control system.
This flexibility is useful for manufacturers producing several sizes or packaging configurations of plastic film, aluminum foil, baking paper, and other roll-type consumables. Instead of installing separate equipment for every specification, one machine can accommodate multiple products through mechanical adjustment and parameter changes.
The machine can operate independently as a single packaging unit or be integrated with upstream and downstream equipment. It can be connected to a rewinding machine so that newly produced rolls are transferred directly into the packaging process.
For manufacturers requiring additional outer packaging, a downstream transparent film packaging machine can be added to provide secondary packaging and product protection.
This makes it possible to establish an integrated production process covering rewinding, box packaging, and outer packaging, reducing manual intervention between production stages.
The equipment is mainly intended for roll-shaped consumables used in household, catering, food accessory, and commercial applications.
Typical applications include:
● Plastic film rolls
● Aluminum foil rolls
● Baking paper
● Silicone-coated paper
● Food wrapping consumables
● Catering-use roll materials
● Single-roll and multi-roll combination packages
For household products, the machine helps manufacturers achieve consistent retail-ready box packaging. For catering and commercial consumables, multi-roll configurations can be used for bulk-oriented packaging requirements.
The enclosed machine structure also helps reduce direct human contact with finished food-related consumables during the packaging process, supporting cleaner production environments.
The main advantage of this equipment is its dedicated handling of cylindrical roll materials rather than simply adapting a general-purpose packaging structure.
Its arc-shaped sorting and guiding mechanism helps prevent rolls from getting stuck or squeezed, while controlled feeding reduces unnecessary friction against plastic film and aluminum foil surfaces. Automatic box forming, material loading, folding, sealing, and coding reduce repetitive manual operations and improve packaging consistency.
For high-volume production, one machine can replace several operators performing repeated manual loading and box-folding tasks. At the same time, its multi-specification adjustment, automatic/manual conversion, material detection, and optional hot melt adhesive system provide greater flexibility for manufacturers producing different roll-type consumables.
The machine is mainly designed for cylindrical roll-shaped products such as plastic film rolls, aluminum foil rolls, baking paper, and silicone-coated paper. Single-roll and multi-roll packaging configurations can be handled within the applicable specification range.
Yes. The machine supports multi-specification adjustment within its designed operating range. Product parameters can be configured through the touchscreen, while the relevant mechanical positions can be adjusted when changing product sizes.
Yes. The box storage system uses vacuum suction cups to pick up and form the paper boxes. The roll materials are then guided into the formed boxes automatically.
Yes. It has a material shortage detection function and a box-rack material detection function. When an abnormal shortage is detected, the system can provide an alarm and stop the corresponding operation to reduce empty-box and defective-product issues.
Yes. A hot melt glue machine can be equipped according to the customer's packaging requirements. This option is useful when stronger box-joint sealing is required.
Yes. The machine can operate as an independent unit or be integrated with upstream rewinding equipment and downstream outer packaging equipment to create a continuous automated packaging line.
Yes. The feeding, sorting, and guiding structures are designed with cylindrical roll materials in mind. Smooth contact surfaces and rounded edges help reduce scratching and friction damage to aluminum foil surfaces during transportation.
The equipment uses PLC automatic control and a touchscreen man-machine interface. Operators can monitor production speed, quantity, operating status, and fault information while adjusting the relevant packaging parameters.
Yes. It supports both automatic and manual operation. Manual mode is useful during machine adjustment, testing, troubleshooting, and maintenance.
Yes. Its automatic material feeding, box forming, loading, folding, sealing, and coding functions are designed to reduce repetitive manual work and provide more consistent packaging for continuous production.
