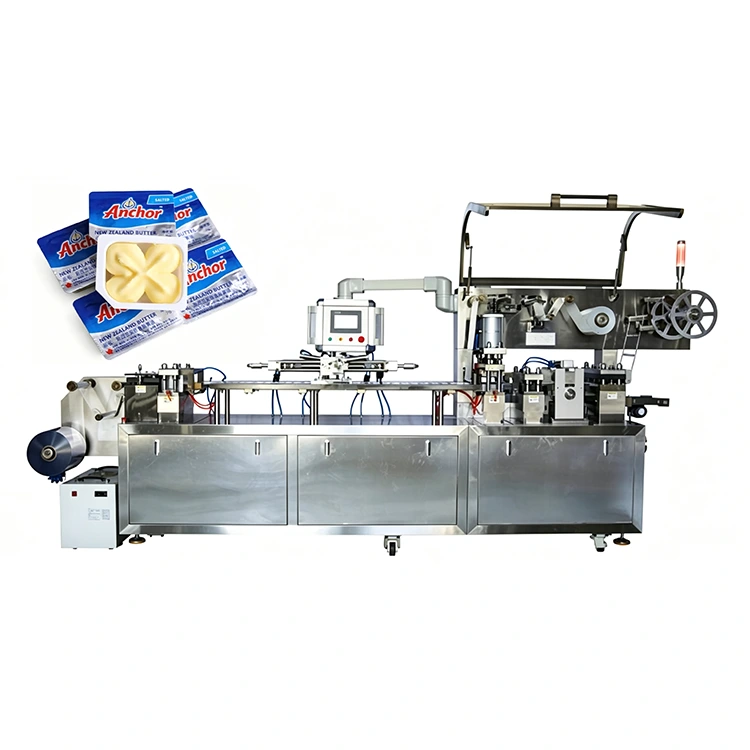

Automtaic Butter Blister Packaging Machine

A Automtaic Butter Blister Packaging Machine needs to do more than form a cavity. The product must be placed accurately, the cavity must maintain its shape during sealing, and the finished portions need to be separated cleanly.

The DPP-260 combines these operations in one production line:

Thermoforming → Filling → Foil Sealing → Coding → Punching → Waste Rewinding

The machine uses a PLC control system to manage key operating parameters, while the forming mold, sealing plate, cutting die and feeding method can be configured according to the product being packaged.

This makes the Machine suitable for manufacturers who need to package butter today and different products or sizes in the future, rather than investing in a machine designed around only one fixed package.

Designed for Portion Butter Packaging

For butter applications, the packaging format can be developed around the required portion size and cavity layout.

The forming mold determines the cavity shape and depth, while the feeding system determines how the butter is loaded into each cavity. The sealing section then applies the selected cover material to close the formed package before the finished portions are punched out.

For projects involving butter, KEDE can evaluate:

● Butter portion size

● Product dimensions

● Cavity volume

● Required cavity depth

● Filling method

● Lidding material

● Number of cavities per cycle

● Target production output

The final configuration should be confirmed after reviewing the actual butter product and packaging requirements.

More Than Butter

The Butter Blister Packaging Machine is not restricted to a single filling application. By changing the mold and adapting the feeding system, it can be configured for different products and package formats.

This multi-product capability is particularly useful for manufacturers handling several SKUs or planning to expand their product range.

What You Get–Standard Equipment

When you order a Automtaic Butter Blister Packaging Machine from KEDE, here's exactly what's included:

All components are new—no refurbished parts, no used subassemblies.

Where the DPP-260 Makes a Difference

High-Frequency Punching

The original machine specification describes a punching frequency of up to 200 times, designed to provide higher punching efficiency than conventional blister packaging machines.

Our Automtaic Butter Blister Packaging Machine combines a flat-plate blister structure with design elements intended to improve production efficiency, mold changeover and package positioning.

Controlled Thermoforming

The PVC sheet is heated before forming, allowing the material to be shaped into the required cavity geometry. The forming depth can reach 35 mm, subject to the selected mold design.

Flexible Product Feeding

Manual loading is available as the standard configuration. For higher-volume applications, automatic vibratory or counting feeders can be selected according to the product.

Adjustable Heat Sealing

The sealing station uses pneumatic pressure control, allowing sealing pressure to be adjusted according to the selected cover material and package configuration.

Integrated Waste Handling

After punching, scrap edges are automatically rewound, helping keep the packaging web organized during continuous production.

Quick Mold Changeover

The forming mold, sealing plate and cutting die are configured according to the finished blister format. This allows the machine to be prepared for different products and cavity layouts.

From CAD Design to Factory Acceptance

Our Automtaic Butter Blister Packaging Machine is manufactured through a controlled production process rather than simply assembled after components arrive.

01 — Engineering

3D CAD modeling and motion simulation are used before production to evaluate machine movement and component relationships.

02 — Component Manufacturing

Laser cutting, forming, welding and CNC machining are used for the machine frame, cladding, molds and precision components.

03 — Mechanical & Electrical Assembly

Mechanical, electrical and pneumatic systems are assembled and checked before the complete machine enters final testing.

04 — Quality Inspection

KEDE carries out raw-material checks, dimensional inspections, sub-assembly testing and final machine inspection during production.

05 — Product Trial

The machine undergoes dry running and material testing. Where samples are provided, the customer's actual product can also be used for a packaging test.

06 — FAT & Export Preparation

The completed machine is cleaned, tested and prepared for export packaging. Factory Acceptance Testing can be witnessed through live video.

This process gives buyers a clearer view of how the machine is manufactured and verified before shipment.

Export-Ready From Wenzhou

KEDE prepares the Automtaic Butter Blister Packaging Machine for international shipment with reinforced export packaging and supporting documentation.

Typical sea freight transit times stated in the supplied information are:

Transit time varies by destination port, carrier and shipping conditions.

Quality & Compliance Documentation

The supplied machine information identifies the following certifications and compliance references:

Relevant certificates and declarations are provided with the shipment according to the supplied documentation.

For a specific destination market, buyers should confirm the exact certification and compliance package required for their application before ordering.

Tell Us Your Butter Packaging Requirements

A suitable butter blister packaging configuration depends on the product portion, cavity dimensions, material and required production output.

For an accurate Butter Blister Packaging Machine quotation, send KEDE:

1. Product type — butter, paste, jam, oil, tablet, capsule, etc.

2. Product dimensions — length × width × height.

3. Desired cavity size — including required cavity depth.

4. Production target — required output per minute, hour or day.

5. Packaging material — PVC, PTP, PET, ALU-ALU or other material.

6. Destination country or port — for shipping and documentation requirements.

Based on this information, KEDE can provide:

Factory quotation + tooling configuration + lead time + technical specification
