This Automatic ALU-PVC and ALU-ALU blister machine operates fully automatically in a precise 8-step sequence: material feeding, heating and forming, manual or automatic product filling, aluminum foil heat sealing, perforation/creasing, finished pack punching, waste rolling, and final goods output. It delivers the precise sizing required for pharmaceutical tablets, capsules, and medical instruments, while ensuring the premium, shelf-ready appearance vital for cosmetics and health supplements. Built with a strengthened frame and high-grade stainless steel, this KEDE equipment fully meets strict international GMP standards for clean workshop environments.

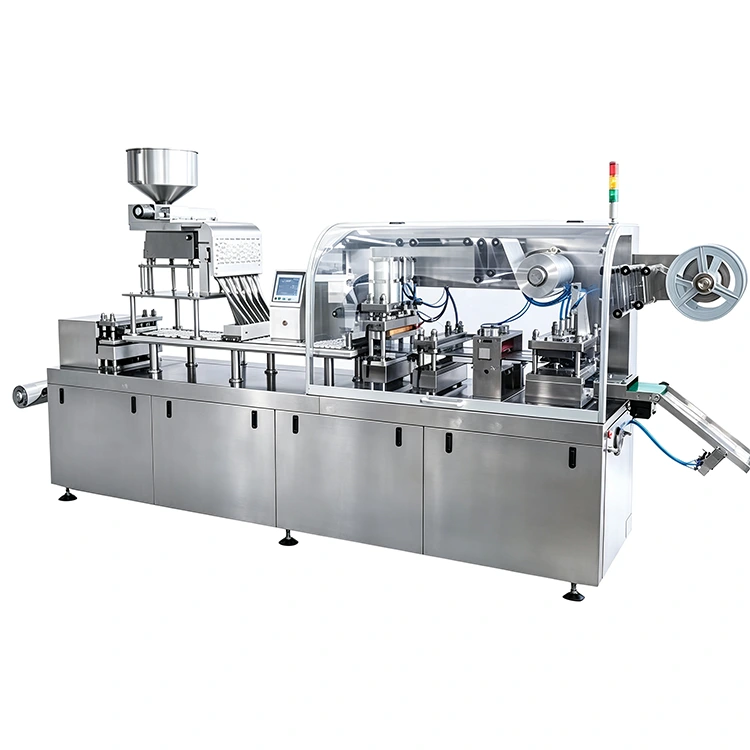

The DPP-260 is a fully Automatic ALU-PVC and ALU-ALU blister machine that performs all steps sequentially without manual intervention:

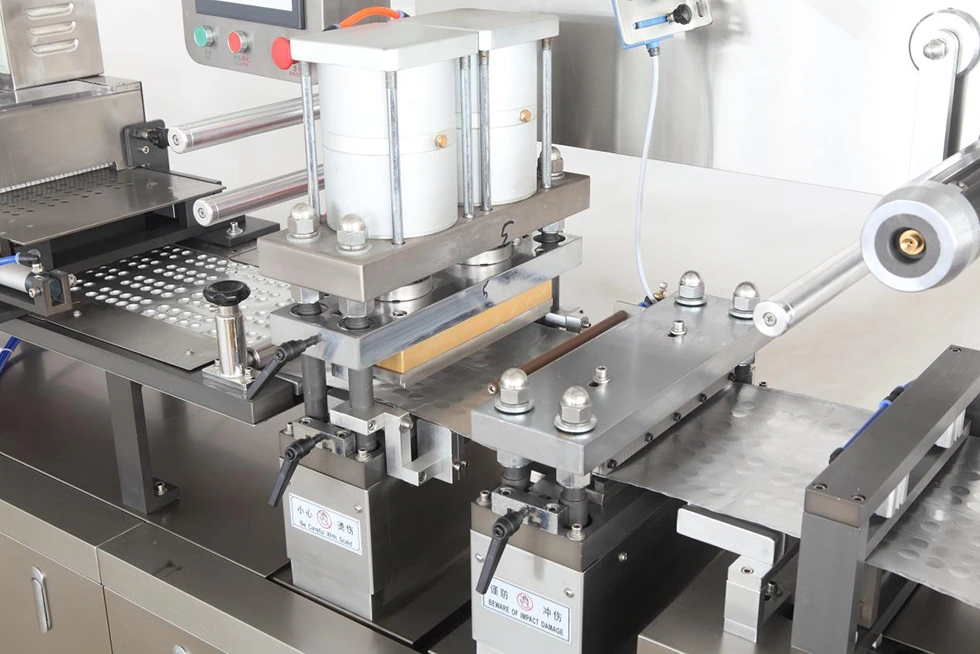

Forming station – PVC or hard aluminum composite film is heated and formed into blister cavities using a flat-plate mold
Product filling station – Products (tablets, capsules, soft gels, small hardware, etc.) are filled into formed cavities – manual or automatic feeding options available
Heat sealing station –aluminum foil or lidding material is heat-sealed over the filled cavities – secure seal with consistent pressure and temperature control
Punching/cutting station – Individual blister plates are punched from the continuous web, with waste edges automatically rewound
Batch coding – Optional inkjet or embossing for date/lot/expiration printing
The machine runs at 15–25 cuts per minute, with each cut producing multiple blister plates depending on the cavity layout.
PLC-based control system with industrial touchscreen interface – centralized monitoring of all parameters
Photoelectric detection – sensors monitor material feed, product presence, and sealing quality
Automatic fault diagnosis – error messages displayed with location and suggested corrective action
Recipe storage – save settings for different blister configurations – changeover takes minutes, not hours
The flat-plate forming mechanism ensures:
Maximum forming depth of 35mm – suitable for larger capsules, tablets, or irregular-shaped products-1
Maximum forming area of 240×130mm – more cavities per forming cycle, boosting output-1
Uniform heating – upper and lower heating plates with independent temperature control ensure even material draw
No distortion – flat mold eliminates the warping or curling common with rotary forming systems
The Automatic ALU-PVC and ALU-ALU blister machine handles a wide range of materials:
|
Material |
Application |
|
PVC / PVDC |
Standard pharmaceutical and food blister packs |
|
PTP aluminum foil |
Lidding for heat sealing |
|
PET / PS |
Cosmetics, electronics, and general packaging |
|
Aluminum-aluminum (ALU-ALU) |
High-barrier pharmaceutical packaging (moisture/oxygen sensitive products) |
|
Paper-based materials |
Eco-friendly or specialty packaging |
Stainless steel cladding (SUS304) – corrosion-resistant, easy to clean, washdown-ready
Accessible design – forming and sealing stations are front-accessible for cleaning and maintenance
FDA-compliant contact surfaces – materials that contact product are food/pharma-grade
|
Technical Parameter |
|
|
Model |
DPP-260 |
|
Speed |
15-25pcs/min |
|
Material |
PTP ALU:Width 260mm,Thick:0.02-0.03mm; |
|
Adjustable range of travel |
Traction stroke:30-140mm |
|
Maximum forming depth(mm) |
28mm |
|
Maximum molding area(mm2) |
250×130×28mm |
|
Power supply |
380V 50Hz |
|
Total Power(KW) |
5kW |
|
Compressed air pressure(MPa) |
0.5-0.7MPa |
|
Compressed air consumption(m3/h) |
≥ 0.22 |
|
Cooling water consumption(m3/h) |
Ordinary tap water circulation cooling. |
|
Noise(dB) |
75dB |
|
Overall dimension(L×W×Hmm) |
4200×650×1640mm |
|
Weight(kg) |
1500kg |
|
Frequency modulation capability of motor |
20-50Hz |
The Automatic ALU-PVC and ALU-ALU blister machine delivers reliable performance across many different industry sectors. It works well with aluminum-plastic, aluminum-aluminum, paper-plastic and other composite laminated packaging materials.
Pharmaceuticals Ideal for packing tablets, capsules, soft gels, pills, suppositories, ampoules and syringes.
Nutraceuticals Perfect for vitamins, dietary supplements, herbal extracts and probiotic products.
Food & Confectionery Great for candy, chewing gum, chocolate, single-serve portion packs and tea bags.
Cosmetics & Personal Care Suitable for cream samples, serum sachets, lip balm sticks and soap bars.
Medical Devices Works with bandages, surgical gloves, syringes and wound dressings.
Consumer Goods Handles batteries, small hardware parts, light bulbs, electronic components and small toys.
Contact KEDE today – tell us your product type (tablets, capsules, cosmetics, etc.), blister size, and target output. We'll send you a proposal with factory-direct pricing, lead time, and recommended tooling configuration within 48 hours.
KEDE Machinery Technology Co., Ltd. – China-based manufacturer and supplier of automatic blister packaging and cartoning solutions. Exporting worldwide with reliable quality and responsive after-sales support
