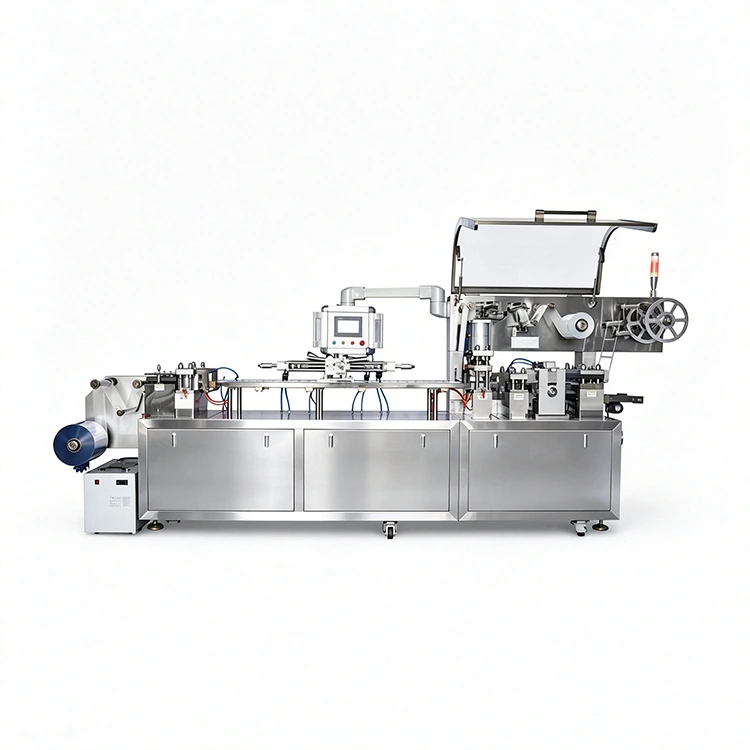

Automatic Liquid Blistering Machine

The DPP-260  automatic liquid blistering machine integrates blister forming, product filling, heat sealing and finished blister cutting into one machine. Its flat-plate forming structure provides flexible cavity design, while independent temperature control and adjustable sealing pressure help maintain consistent packaging quality. KEDE manufactures and tests the machine in its Wenzhou factory and provides tooling, technical documentation, factory testing and after-sales support for international B2B buyers.

Specifications

How the machine  Works

The DPP-260 Automatic liquid blistering machine completes blister packaging through four main stages: forming, filling, sealing and cutting.

The packaging material is heated and formed into the required cavities first. The liquid product is then filled into the cavities before the lidding material is heat sealed. After sealing, the blister sheet is cut into the required format and the production waste is collected by the rewinding system.

Upper and lower heating plates use independent PID temperature control, while pneumatic pressure control allows the sealing pressure to be adjusted according to the packaging material.

Flexible Tooling for Different Products

The blister mold, sealing plate and cutting die are not fixed. KEDE manufactures the tooling according to the customer's product dimensions and blister layout.

For liquid products, the required cavity volume and depth are determined by the filling quantity and product size. PVC, PTP, PET, PS, ALU-ALU and other suitable packaging materials can be considered according to the application.

Manual loading is included in the standard configuration. For suitable products requiring higher output, KEDE can also provide automatic vibratory or counting feeding solutions.

Tooling design normally takes 7–10 days, with tooling production requiring a further 15–20 days. Final lead time depends on the machine configuration and tooling requirements.

Built and Tested by KEDE

The Automatic liquid blistering machine is manufactured and assembled at the KEDE factory in Wenzhou, Zhejiang, China. Production covers machining, frame fabrication, electrical assembly, mechanical assembly and machine testing.

Before shipment, the machine is inspected and tested through its main operating functions. Customer samples and packaging materials can also be used for testing when provided in advance, allowing the forming, filling, sealing and cutting performance to be checked before delivery.

The standard machine includes SUS304 stainless steel exterior cladding, customized forming tooling, heating and sealing systems, PLC control, touchscreen HMI, safety guards and operating documentation.

Factory Direct, No Middleman

We Keep Pricing Transparent

We provide a single, clear quotation with line-item breakdown. No hidden fees, no "surprise" charges.

Payment terms:

30% deposit to start production

70% balance before shipping (after FAT approval)

Shipping & Logistics–From Our Door to Yours

Estimated sea freight transit times:

Request Your Factory-Direct Quote

Contact KEDE Machinery Today

For a factory-direct wholesale price on the DPP-260, please provide:

1.Your product type (tablets, capsules, food items, cosmetics, etc.)

2.Product dimensions (length × width × height)

3.Required blister cavity depth

4.Output target (cuts per minute or boxes per day)

5.Preferred material (PVC, PTP, ALU-ALU, PET, etc.

6.Destination port/country

We'll respond within 48 hours with:

●Factory-direct price (FOB Shanghai/Ningbo)

●Recommended tooling configuration

●Lead time

●Technical specification sheet

Frequently Asked Questions

What products can the Automatic liquid blistering machine  package?

The machine is mainly designed for liquid and unit-dose products, including pharmaceutical liquids, cosmetic samples, food products and similar applications. Product testing is recommended before final tooling confirmation.

Can the blister mold be customized?

Yes. KEDE can customize the forming mold, sealing plate and cutting die according to your product dimensions, cavity layout and required blister size.

What packaging materials can be used?

Depending on the application, the DPP-260 machine can work with materials such as PVC, PTP, PET, PS and ALU-ALU. The actual material should be confirmed through technical testing.

Is automatic filling included?

The standard configuration uses manual loading. Automatic feeding or counting systems can be added when required and when suitable for the product.

What is the production speed of the DPP-260?

The rated speed is 15–25 cuts per minute. Actual output depends on the blister format, cavity layout, product characteristics and machine configuration.

Can KEDE test our product before shipment?

Yes. Customers can provide product samples and packaging materials for machine testing before shipment, subject to the agreed testing arrangement.

What is the lead time?

The typical machine production lead time is 30–45 days after order confirmation. Customized tooling may affect the final schedule.

Does KEDE provide after-sales support?

Yes. KEDE provides installation guidance, operation training, remote technical support and spare parts supply for overseas customers.
