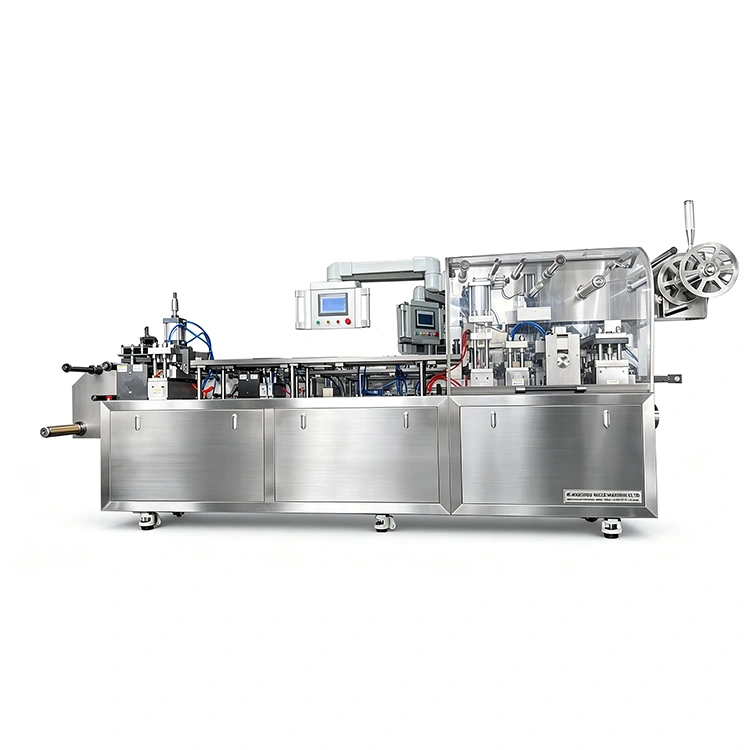

The Automatic flat plate blister machine automatically completes:
PVC sheet feeding → heating & forming → product filling (manual or automatic feeder) → heat sealing with aluminum foil → perforation/creasing → punching into finished blister plates → waste edge rewinding → finished product output.
|
Technical Parameter |
|
|
Model |
DPP-260 |
|
Speed |
15-25pcs/min |
|
Material |
PTP ALU:Width 260mm,Thick:0.02-0.03mm; |
|
Adjustable range of travel |
Traction stroke:30-140mm |
|
Maximum forming depth(mm) |
28mm |
|
Maximum molding area(mm2) |
250×130×28mm |
|
Power supply |
380V 50Hz |
|
Total Power(KW) |
5kW |
|
Compressed air pressure(MPa) |
0.5-0.7MPa |
|
Compressed air consumption(m3/h) |
≥ 0.22 |
|
Cooling water consumption(m3/h) |
Ordinary tap water circulation cooling. |
|
Noise(dB) |
75dB |
|
Overall dimension(L×W×Hmm) |
4200×650×1640mm |
|
Weight(kg) |
1500kg |
|
Frequency modulation capability of motor |
20-50Hz |
● High-Precision Forming: Flat molds ensure uniform wall thickness and precise dimensions, preventing warping for a flawless product display.
● Flawless Detail Reproduction: Excellent for intricate and fine items, delivering high luster and superior transparency.
● Hermetic Protection: Advanced heat-sealing provides a moisture-proof, dust-proof, and anti-counterfeiting barrier to extend product shelf life.
● Fully Automated High-Speed Production: Features continuous feeding, forming, sealing, and cutting to slash labor costs and boost ROI.
● Flexible & Customizable Layout: Large forming area supports diverse layouts and materials (PVC, Aluminum, PTP) for tailored packaging solutions.
● Accurate Dosage Control: Built-in smart sensors guarantee exact filling quantities, meeting strict pharmaceutical and food standards.
● GMP-Compliant & Easy Maintenance: Clean, modular design allows quick disassembly, meeting international hygienic and GMP certification standards.
● Smart PLC Operation: Intuitive touchscreen interface with remote monitoring and diagnostics for hassle-free troubleshooting.
Applications: Widely used in Pharmaceuticals, Food, Cosmetics, Medical Devices, and Electronic Components.
|
Industry |
Product Examples |
|
Pharmaceuticals |
Tablets, capsules, soft gels, pills, suppositories, ampoules, syringes |
|
Nutraceuticals |
Vitamins, supplements, herbal extracts, probiotics |
|
Food & Confectionery |
Candy, chewing gum, chocolates, portion packs, tea bags |
|
Cosmetics & Personal Care |
Cream samples, serum sachets, lip balm sticks, soap bars |
|
Medical Devices |
Bandages, surgical gloves, syringes, wound dressings |
|
Consumer Goods |
Batteries, small hardware, light bulbs, electronic components, toys |
The machine is compatible with aluminum-plastic, aluminum-aluminum, paper-plastic, and other laminated packaging formats
|
Comparison Point |
Generic Blister Machines |
KEDE DPP-260 |
|
Forming method |
Mixed – rotary or roller types with inconsistent wall thickness |
Flat-plate forming – uniform thickness, no warping |
|
Control system |
Basic PLC or manual |
Full PLC + HMI touchscreen with recipe storage and diagnostic alerts |
|
Material compatibility |
Limited to specific materials |
PVC, PTP, PET, PS, ALU-ALU – flexible |
|
Hygiene compliance |
Often painted carbon steel |
Full stainless steel exterior – GMP-grade |
|
Certification |
Unverified or self-declared |
CE certified, ISO 9001:2000 quality system |
|
After-sales support |
Limited documentation and support |
Full manual, video tutorials, remote diagnostics, spare parts stocked |
|
Price |
Lower upfront cost, higher long-term maintenance |
Factory-direct wholesale pricing with lower total cost of ownership |
What customers say: "The flat-plate forming gives us consistent blister quality we couldn't get with rotary machines – no thin edges, no rejects."
|
Shipping Item |
Details |
|
Packaging method |
Export wooden crate with internal bracing and VCI rust protection |
|
Protection |
Stainless steel surfaces covered with protective film; sensitive components padded with foam |
|
Container type |
20ft or 40ft GP container (FCL recommended) |
|
Port of loading |
Shanghai or Ningbo, China |
|
Delivery lead time |
30–45 days after order confirmation and deposit |
|
Shipping documentation |
Commercial invoice, packing list, bill of lading, certificate of origin, CE declaration, ISO certificate |
|
Inspection before shipping |
Factory acceptance test (FAT) with your actual products – live video inspection available |
