For many vacuum-packed products, the packaging film is only as protective as its least-protective side. A conventional thermoforming machine may use an aluminum composite bottom film with a transparent plastic top film. While this is sufficient for many applications, the transparent side still allows light through and provides a different barrier performance from the aluminum side.

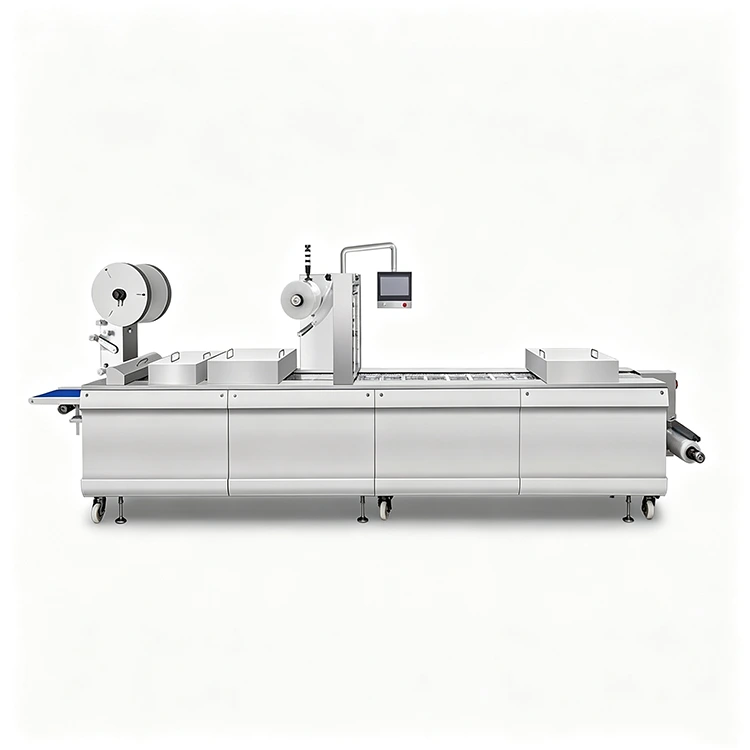

Our Automatic Double Sided Aluminum Film Thermoforming Machine takes a different approach.
Both webs are made from aluminum composite film. The lower web is formed into the product cavity, while the upper web is heated and formed to match it. After product loading, the two sides are brought together for vacuuming or gas flushing and heat sealing.
The result is a fully enclosed aluminum-film package without using pre-made aluminum foil bags.
Film forming → Product loading → Vacuum / gas flushing → Double-sided sealing → Cutting
That configuration makes the LSM series particularly relevant to products where light protection and high barrier performance matter as much as vacuum packaging itself.
The main difference is not simply the appearance of the finished package. It changes the barrier structure of the package.
With aluminum composite film on both sides, the package offers stronger protection against light, oxygen and moisture than a structure using aluminum film on only one side.
This is useful for products such as light-sensitive pharmaceutical materials, selected prepared foods, dried specialty products and other goods where exposure to light or water vapor can affect quality during storage.
For buyers already using ordinary thermoforming equipment, the LSM series can therefore be considered when the existing film structure does not provide the required barrier level.
After the product is placed into the formed cavity, the package can be processed under vacuum.
For products that should not be compressed heavily, gas flushing can be used instead or combined with vacuum packaging. Nitrogen or carbon dioxide can be introduced according to the product and preservation process.
The choice between vacuum and modified-atmosphere packaging should be based on the product itself rather than using one setting for every application.
The Automatic Double Sided Aluminum Film Thermoforming Machine is designed around continuous roll-film operation. Upper and lower film feeding systems use tension control and alignment mechanisms to keep the two webs synchronized during forming and sealing.
The production sequence is handled through a PLC and touchscreen interface, with adjustable parameters for film feeding, vacuum time, sealing temperature and cooling.
Once the appropriate parameters have been established for a product, they can be stored for repeat production.
The finished packs are separated after sealing, while the remaining edge film can be collected automatically. This keeps film handling within the machine instead of requiring a separate waste-removal operation.
|
Model |
LSM320 |
LSM420 |
LSM520 |
|
Vacuum Degree |
≤200* |
≤200* |
≤200* |
|
Upper Film Width |
293 mm |
393 mm |
493 mm |
|
Lower Film Width |
322 mm |
422 mm |
524 mm |
|
Voltage |
380V / 50Hz |
380V / 50Hz |
380V / 50Hz |
|
Dimensions |
4500 × 900 × 1800 mm |
6500 × 1100 × 1900 mm |
8500 × 1100 × 1900 mm |
|
Machine Weight |
1,300 kg |
1,700 kg |
2,100 kg |
The double-sided aluminum structure is most valuable when the package needs more than basic vacuum protection.
In pharmaceutical packaging, it can be considered for selected light-sensitive products, herbal medicines, powders, granules and medical materials requiring moisture and light protection.

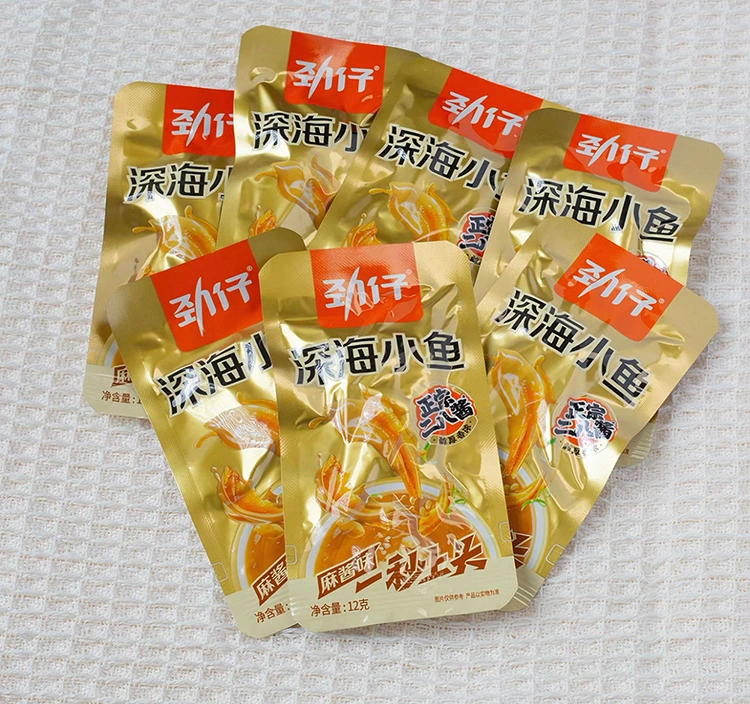

For cooked and prepared foods, it can be used for products such as braised meat, poultry products, frozen foods and dried aquatic products, subject to the required film and sealing process.
For agricultural and specialty products, the high-barrier structure is suitable for products such as premium tea, mushrooms and dried specialties where light and moisture exposure can affect storage quality.
It can also be used for selected metal and electronic components where a sealed, moisture-resistant package is required.
The Automatic Double Sided Aluminum Film Thermoforming Machine can be equipped around the actual production process rather than treated as a standalone vacuum unit.
Automatic product loading can be added for higher-volume production. Coding, easy-open punching, corner cutting and other finishing functions can be integrated into the packaging section.
For downstream automation, the finished packs can be connected to conveying, cartoning and other secondary packaging equipment.
For products containing liquid, powder or requiring high-temperature processing, the vacuum, filtration, sealing and film configuration should be confirmed before the machine is specified.
For this type of machine, the product sample is more useful than a simple request for machine speed.
KEDE should normally receive the product dimensions, weight, required package size, cavity depth, upper and lower film structure and target production capacity before the final model is selected.
If the product contains liquid, powder or is intended for steaming or sterilization, this should also be stated at the quotation stage because it can affect the vacuum system, sealing parameters and film selection.
The LSM series forms and seals aluminum composite film on both the upper and lower sides. Conventional machines may use aluminum composite film only for the bottom film and a different material for the top film.
No. It uses roll film and forms the package during production.
Yes. The machine can be configured for vacuum packaging, gas flushing or a combination of both, depending on the product.
Yes. The forming mold can be customized for different product shapes and cavity designs.
Yes. Automatic feeding, conveying and downstream cartoning equipment can be integrated according to the production requirements.
