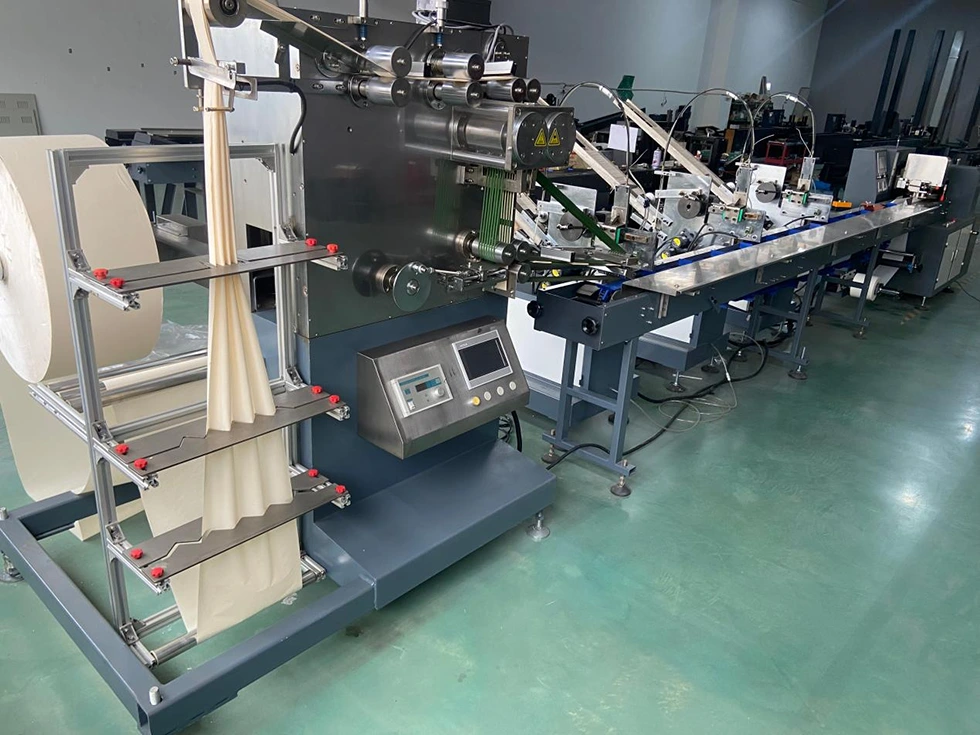

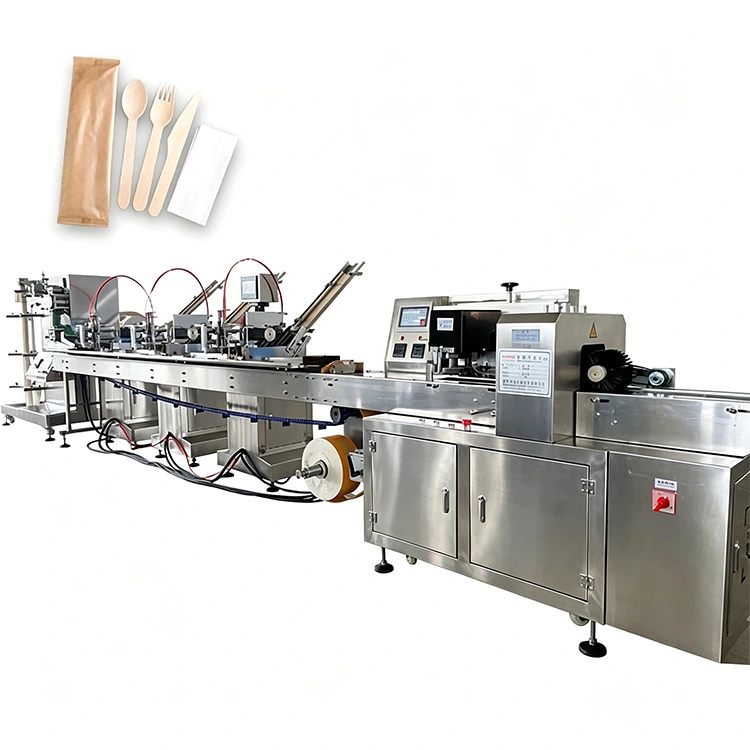

Automatic Napkin and Knife Fork Spoon Packing Machine

The main difference between our Automatic Napkin and Knife Fork Spoon Packing Machine and a conventional flow wrapping machine is the way the products are prepared before wrapping.

The napkin and individual cutlery pieces need to arrive at the packaging point as one organized set. KEDE integrates the folding, sorting and feeding sections with the final wrapping unit, so the complete set can be assembled and packed without separate manual bundling.

Working Process

Tissue Roll Feeding

The tissue roll is fed into the folding section, where the paper is folded and cut to the required length.

Cutlery Feeding

Plastic, wooden or paper knives, forks and spoons are supplied through the feeding system. Vibratory sorting and individual feeding help arrange the pieces before packaging.

Set Convergence

The napkin and cutlery components are brought together and aligned before entering the wrapping section.

Film Wrapping

The packaging film forms around the complete set.

Sealing & Cutting

Longitudinal sealing forms the back seam, while transverse sealing and cutting separate the individual packs.

Date Printing & Discharge

Production information can be printed inline before finished packs are transferred to the output conveyor.

Parameter

Machine Model	BN-8600
Speed	60-150bags/min
Napkin—dimensions	6-17inch
Folding Range	6-12folds
Folding with	25-60mm
Scroll max-dia	Diameter 900
Scroll max-with	450mm
Scroll embossing-width	330mm
Packing line dimensions	1900*1400*1700mm
Power	1.5KW
Film max-width	250mm
Film thickness	0.012-0.05mm
Packing speed	20-150包/分（bag/min）
Bag dimensions
Length	100-300mm
Width	30-80mm
Height	≤35mm
Packing line dimensions	8200*1300*1800mm
Weight	467kg

Designed for Disposable Tableware Sets

The BN-8600 is intended for products that need to be assembled and packaged as a set, rather than simply wrapped as individual items.

Typical combinations include:

● Napkin + plastic knife + fork + spoon

● Napkin + wooden knife + fork + spoon

● Napkin + paper cutlery

● Napkin + cutlery + toothpick

● Napkin + cutlery + seasoning sachet

● Napkin + cutlery + wet wipe

The actual feeding combination can be configured according to the required set composition and package dimensions.





Flexible Material Compatibility

Tableware Materials

The feeding system can handle suitable:

● Plastic knives, forks and spoons

● Wooden or biodegradable cutlery

● Paper tableware

● Disposable dry tissues

● Dust-free napkins

● Single-use wet wipes

Packaging Films

Depending on the required packaging structure, the machine can be configured for:

● OPP heat-sealing film

● PE film

● Composite film

● Paper-plastic composite film

● Aluminum-coated film

The final film should be selected according to its heat-sealing characteristics and the required appearance of the finished package.

Automatic Feeding for Multiple Components

Packaging a cutlery set requires more than conventional product conveying.

Our Automatic Napkin and Knife Fork Spoon Packing Machine uses separate feeding sections for the tissue and cutlery components. Vibratory sorting helps organize knives, forks and spoons before they enter the common conveying path.

The synchronized conveying section then brings the different components together for packaging.

This arrangement reduces the need for operators to manually assemble each set before wrapping, which is particularly useful for high-volume catering and disposable tableware production.

Configuration for Different Cutlery Sets

KEDE can adjust the feeding and convergence configuration according to the customer's required combination.

For example:

Standard Set
Napkin + Knife + Fork + Spoon

Extended Set
Napkin + Knife + Fork + Spoon + Toothpick

Foodservice Set
Napkin + Cutlery + Seasoning Sachet

Hygiene Set
Napkin + Cutlery + Wet Wipe

The package dimensions, feeding arrangement and film specification should be confirmed according to the final set configuration.



Suitable for Catering and Foodservice Packaging

The Automatic Napkin and Knife Fork Spoon Packing Machine is suitable for packaging operations where disposable tableware needs to be prepared in consistent sets.

Takeaway & Fast Food

Prepares ready-to-use cutlery sets for takeaway meals, burgers, fried chicken and other quick-service food.

Airline Catering

Packages napkin and cutlery combinations into compact individual sets for meal distribution.

Hotels & Restaurants

Provides individually packed tableware sets for guest rooms, catering service and takeaway orders.

Prepared Food & Catering Suppliers

Suitable for manufacturers supplying disposable tableware kits together with ready-to-eat meals.

Disposable Tableware Manufacturers

Automates the final sorting and packing stage after production of disposable knives, forks and spoons.



FAQ

What products can this machine pack?

It is designed for disposable cutlery sets combined with napkins, including plastic, wooden and paper knives, forks and spoons.

Can it pack a napkin, knife, fork and spoon together?

Yes. The BN-8600 is specifically designed to automatically arrange and combine these components before wrapping them into one individual package.

Can toothpicks or seasoning sachets be added to the set?

Yes. The feeding and convergence sections can be configured for additional components such as toothpicks, salt and pepper sachets or wet wipes.

What packaging film can the machine use?

Compatible options include OPP heat-sealing film, PE film, composite film, paper-plastic composite film and aluminum-coated film, subject to the specific film specification.

What is the packing speed?

The stated packing speed is 20–150 bags/min. Actual output depends on the cutlery combination, napkin size, package dimensions and feeding configuration.

Can the machine handle different napkin sizes?

Yes. The specified napkin size range is 6–17 inches, with the folding configuration adjustable within the machine's working range.

Can KEDE customize the machine for our cutlery set?

Yes. KEDE can configure the feeding, convergence and packaging sections according to the required cutlery combination, package size, film and production target.
