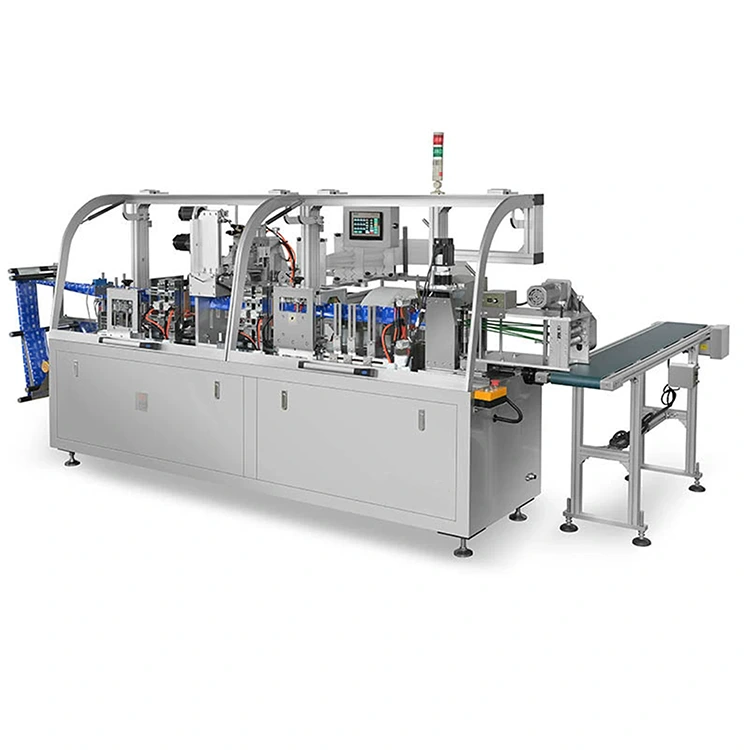

Automatic Nonwoven Wet Wipes Packaging Machine

The Automatic Nonwoven Wet Wipes Packaging Machine handles spunlace and other wet-strength nonwoven materials and supports single-piece sachets as well as multi-piece wet wipes packs, with a packaging speed of 80–180 bags/min. It is suitable for wet wipes manufacturers, OEM producers and packaging suppliers serving healthcare, personal care, food service and household cleaning markets.



Integrated Wet Wipes Processing & Packaging

The Automatic Nonwoven Wet Wipes Packaging Machine combines the main production stages in one machine:

Fabric unwinding → Folding → Liquid dosing → Cutting → Counting & stacking → Film forming → Sealing → Coding → Discharge

The integrated design reduces manual transfer between wet wipe processing and packaging. Production parameters can be adjusted through the PLC touchscreen according to different wipe sizes, folding methods and pack quantities.

Precise Liquid Dosing

A servo metering pump and flow sensor control the liquid application. The specified dosing accuracy is up to ±1%, helping maintain consistent moisture from pack to pack.

The system can be adapted to different wet wipe liquids, including disinfectant solutions, alcohol-based formulations, baby moisturizing liquids and cleansing solutions. Liquid characteristics should be confirmed before machine configuration.

Flexible Folding and Cutting

The fabric feeding system uses tension control to reduce wrinkles and material deformation during continuous operation.

The machine supports different folding arrangements, including Z-fold, C-fold and W-fold, with vertical folding up to 10 folds and horizontal folding up to 4 folds.

A servo-driven rotary knife provides fixed-length cutting, with a specified cutting error of ≤±0.5 mm.

Automatic Counting and Stacking

After cutting, photoelectric counting and automatic stacking control the number of wipes in each pack.

The system supports approximately 5–120 wipes per package, depending on wipe size and production configuration.

Three-Side or Four-Side Sealing

The packaging unit supports three-side and four-side sealing for different wet wipe pouch designs.

Compatible packaging materials include:

● Composite films

● Aluminized films

● Coated films

● Matte packaging films

Optional configurations include flip-top labeling, easy-peel opening and date/batch coding.

Technical Specifications

Model	KD-250H
Sealing type	Threeside/Four Side
Speed	80-180bags/min
Packing Length	40-125mm
Packing Width	40-100mm
Packing Material	Composite films, aluminized films, etc.
Wet wipe materials	30-80g Clean paper Wet strength paper Needle-punched non-woven fabric
Fold	Vertical 10 folds/ Horizontal 4 folds
Air soure	300-500ml/min, 0.6-1Mpa
Power	4.8kw
Machine weight	1900KGS
Dimension	3500*2300*1800mm



Applications

Medical & Healthcare

Disinfectant wipes, alcohol wipes and cleaning wipes.

Baby & Personal Care

Baby wipes, facial cleansing wipes, makeup remover wipes and skincare wipes.

Food Service

Catering wipes, disposable dining wipes and aviation or hotel amenity wipes.

Household Cleaning

Furniture wipes, shoe wipes, kitchen cleaning wipes and pet cleaning wipes.



Suitable Wet Wipe Materials

The Automatic Nonwoven Wet Wipes Packaging Machine can process various substrates, including:

● Spunlace nonwoven fabric

● Needle-punched nonwoven fabric

● Wet-strength paper

● Clean paper

● Other suitable nonwoven materials

For lightweight materials, proper tension control is important to prevent stretching and folding problems.

Optional Configurations

For different production requirements, KEDE can provide options such as:

● Flip-top labeling unit

● Easy-peel punching unit

● Liquid concentration detection

● Metal detector

● Checkweigher

● Shrink tunnel

● Automatic cartoning machine

● Carton bundling machine

● Dual-row production configuration

● Ultrasonic sealing

The final configuration should be selected according to the wet wipe material, liquid formulation, pack size and packaging film.

Production Safety for Alcohol-Based Wet Wipes

For wet wipes containing flammable alcohol-based liquids, the machine should be configured with appropriate explosion-proof electrical components, pipelines and ventilation provisions according to the production environment and local safety requirements.

This configuration should be confirmed with KEDE before ordering.

FAQ

What is the speed of the Automatic Nonwoven Wet Wipes Packaging Machine ?

The rated speed is 80–180 bags/min, depending on the wipe size, pack quantity and packaging format.

What wet wipe materials can it process?

It supports spunlace and other nonwoven fabrics, wet-strength paper and clean paper. Material specifications should be confirmed before production.

Can it pack single-piece and multi-piece wet wipes?

Yes. The machine can be configured for both single-piece and multi-piece wet wipe packaging.

Can it produce flip-top wet wipes?

Yes. A flip-top labeling and opening configuration is available as an option.

Can it handle alcohol-based wet wipes?

Yes, with the appropriate safety configuration. Explosion-proof requirements should be confirmed before ordering.

Can KEDE customize the machine?

Yes. Configuration can be adjusted according to the wipe material, folding method, liquid, package size, film and required output.
