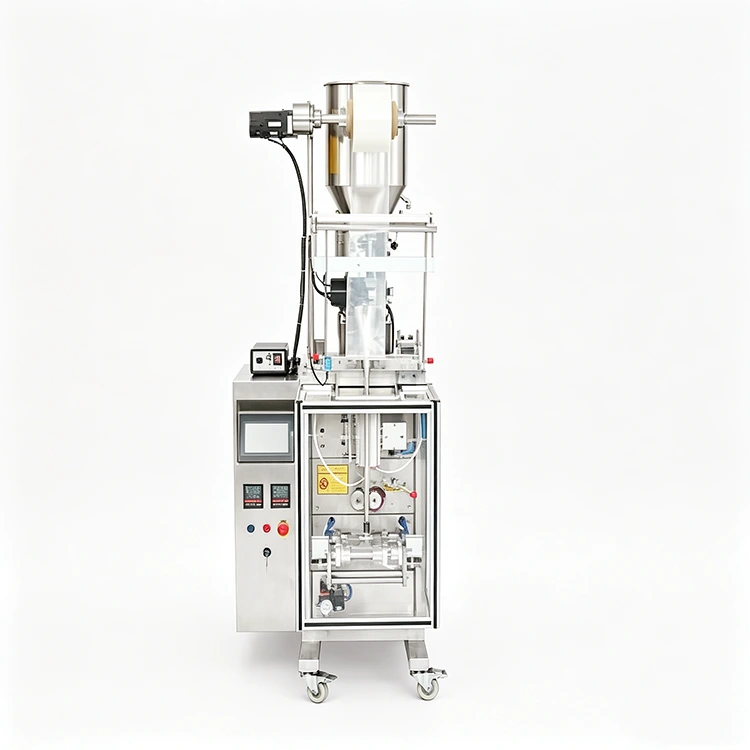

The Automatic Liquid Bag Wrapping Machine uses a piston-type quantitative filling system and supports a filling range of 5–100 g, making it suitable for small sachets of water, sauces, honey, edible oil, liquid detergents, cosmetic liquids and other flowable products. The compact stainless-steel structure is designed for production environments where hygiene, easy cleaning and limited floor space are important.
The Machine completes the main packaging operations vertically, reducing the amount of manual handling between filling and sealing.
The packaging film is installed on the film holder and guided into the bag-forming section.
The film is shaped into the required bag format according to the selected sealing configuration.
A piston pump delivers the preset amount of liquid into each bag. The standard measuring range is 5–100 g.
The filled bag is sealed according to the selected three-side or four-side sealing configuration.
The sealed film is cut into individual sachets and transferred to the discharge area.
This arrangement makes the BLQ240 suitable for single-use liquid portions and small-volume retail packs.
Liquid packaging is not a one-size-fits-all application. Honey, edible oil, detergent and water have different flow characteristics, which can affect filling and sealing performance.
KEDE can evaluate the following before confirming the machine configuration:
Liquid type → Filling weight → Bag size → Film structure → Sealing method → Required output
Customers can provide their liquid sample and packaging film for a filling and sealing test. The test results can then be used to determine the appropriate filling configuration and operating parameters.
|
Model Number |
BLQ240 |
|
CapacityMax |
0-45 bags/min |
|
Range of measurement(g) |
5-100g |
|
BagMaxsize(mm) |
(L)150mm, (W)120mm |
|
Filling accuracy |
±1.2% |
|
Power(W) |
2200W |
|
Source voltage |
220V/50HZ |
|
Net weight(kg) |
320KG |
|
Overall dimensions |
1000*800*1700(LxWxH)mm |
The Automatic Liquid Bag Wrapping Machine is suitable for a range of homogeneous, flowable liquid products, including:
● Drinking water
● Honey
● Soy milk
● Sauces and seasoning liquids
● Soup liquids
● Edible oil
● Disinfectant solutions
● Liquid detergent
● Hand-care and cosmetic liquids
● Nutrient solutions
● Suitable agricultural liquid products
The actual filling pump, sealing configuration and packaging film should be selected according to the viscosity, temperature and characteristics of the liquid.
The BLQ240 Automatic Liquid Bag Wrapping Machine can be configured for different small-bag structures, including:
Three-Side Sealed Flat Bags
Suitable for compact individual liquid sachets.
Back-Sealed Strip Bags
The film forms a continuous strip with a longitudinal back seal before transverse cutting.
Small Vertical Liquid Bags
Suitable for products requiring a vertically formed pouch structure.
Compatible film options can include OPP composite film, PET/PE film, aluminum foil-based structures and paper-plastic composite films, subject to sealing and product compatibility.
For small-volume liquid packaging, filling consistency is directly related to the quality of the finished sachet.
The BLQ240 Machine uses a piston-type quantitative filling system with a stated measuring range of 5–100 g. Under suitable operating conditions, the filling accuracy can reach approximately ±1.2%.
Actual accuracy may vary depending on liquid viscosity, temperature, filling volume and product characteristics. For this reason, KEDE can conduct a filling test with the customer's actual liquid before final machine configuration.
The machine uses stainless steel in the main product-contact areas, with 304 stainless steel specified for relevant liquid and film contact components.
The vertical structure also keeps the main filling and sealing sections accessible for routine cleaning and inspection.
For food, daily chemical and other hygiene-sensitive applications, the final material and component configuration should be confirmed according to the product and applicable regulations.
The Automatic Liquid Bag Wrapping Machine has a vertical structure measuring approximately 1000 × 800 × 1700 mm, with a net weight of about 320 kg.
Casters are fitted at the bottom of the machine, allowing it to be moved when necessary and positioned alongside an existing filling or production line.
This compact footprint makes the machine suitable for workshops where floor space is limited.
It can package suitable flowable liquids such as water, honey, sauces, edible oil, soy milk, liquid detergent, cosmetic liquids and other homogeneous liquid products.
The standard filling range is 5–100 g per bag.
The stated filling accuracy is approximately ±1.2% under suitable operating conditions. Actual accuracy depends on the liquid characteristics and filling volume.
The machine can be configured for three-side sealed flat bags, back-sealed strip bags and small vertical liquid bags.
Suitable options include OPP composite film, PET/PE film, aluminum foil-based structures and paper-plastic composite film. The final film should be confirmed through testing.
Yes, suitable viscous liquids can be packaged with the appropriate filling configuration. A product test is recommended to determine the suitable pump and operating parameters.
Yes. KEDE can test the filling and sealing performance using the customer's product and packaging materials before confirming the final machine configuration.
The BLQ240 has a maximum stated capacity of 45 bags/min. Actual production speed depends on filling volume, liquid properties, bag size and sealing conditions.
Yes. KEDE can adjust the filling, bag size, sealing configuration and other machine settings according to the liquid product and packaging requirements.
