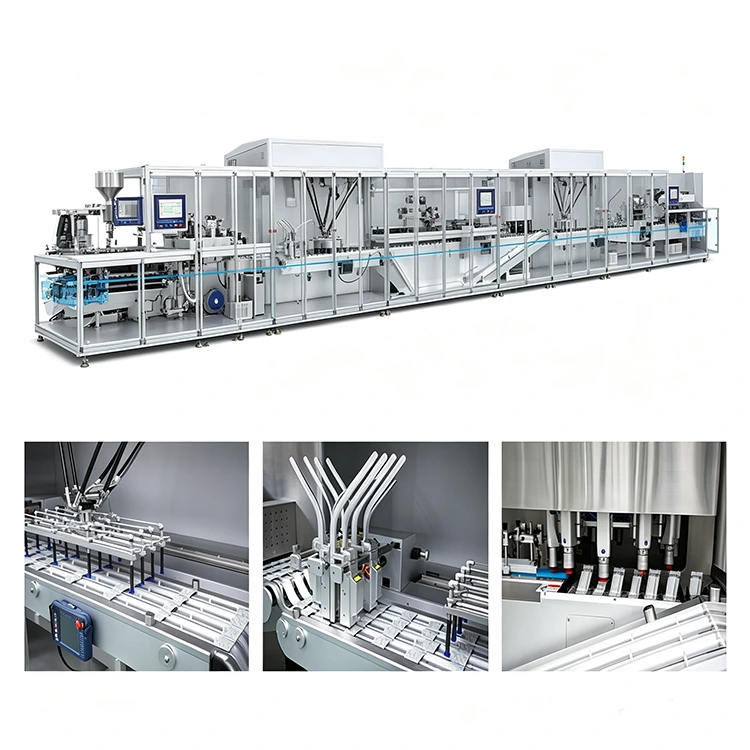

Our Automatic Blister Bag Packing Machine Line combines blister forming, pharmaceutical foil sealing, blister plate transfer and pillow bag packaging into one continuous packaging system. Instead of transferring blister packs between separate machines, the line automatically conveys qualified blister cards to the outer-bag packaging section, helping reduce manual handling and improve packaging consistency.
The line adds a secondary pillow bag around the blister pack after the primary blister packaging process.
This gives the production line two packaging stages:
PVC/PVDC or other suitable forming material is heated and formed into cavities. Tablets or capsules are fed into the cavities, medicinal aluminum foil is sealed over the formed web, and the finished blister cards are punched and transferred.
The qualified blister cards are automatically conveyed to the pillow packing section, inserted into the packaging film, longitudinally sealed, cross-sealed and cut into individual outer bags.
The result is a continuous:
Blister Forming → Filling → Foil Sealing → Inspection → Punching → Transfer → Pillow Wrapping → Finished Pack
After blister formation, the cards enter the outer-bag packaging section.
The pillow wrapper automatically performs:
Film unwinding → film forming → blister insertion → longitudinal sealing → transverse sealing → cutting → finished bag discharge
The outer bag can provide an additional barrier against dust, moisture and handling contamination, depending on the selected film structure.
For products requiring additional protection from light, suitable aluminum-based or light-blocking packaging films can be considered.
The blister machine, transfer system and pillow packing section are coordinated through a centralized PLC and touchscreen control system.
The control system manages:
● Conveyor synchronization
● Production speed adjustment
● Product positioning
● Machine status monitoring
● Fault alarms
● Automatic line stop when a major section stops
If the blister section temporarily reduces speed, the downstream pillow packaging section can be synchronized accordingly to help avoid excessive accumulation or empty packaging cycles.
|
Max. Speed: |
alu/pvc 150 punches/min. |
|
Max. Output: |
400 blisters/min. (alu/pvc blister size 57× 80mm) |
|
Max. Forming Area: |
260×210mm |
|
Max Forming Depth: |
17mm |
|
Material: |
VC/PET hard sheet + medicinal aluminum foil Max. width 270mm |
|
Machine Power: |
19kw |
|
Machine Dimension: |
5500×1500×2000mm (5 stations) |
|
Machine Weight: |
3200kg |
|
Max. Output: |
400 cartons/min. |
|
Range of Carton Size: |
Max.: 200x90x60mm Min.: 75x30x15mm |
|
Machine Power: |
19kw |
|
Machine Dimension: |
1200x1100x1800mm |
|
Machine Weight: |
5000kg |
|
Power Supply |
380V, 50/60Hz |
|
Working Air Pressure |
0.5–0.7 MPa |
The primary application is secondary packaging of blister-packed:
● Tablets
● Hard capsules
● Soft capsules
● Granules
● Other small solid pharmaceutical products
The outer pillow bag can provide an additional packaging layer for storage and transportation.
Suitable configurations can also be considered for blister-packed supplements, probiotic products and other small solid healthcare products.
The Automatic Blister Bag Packing Machine Line may be adapted for blister-packed confectionery and other small solid products where an additional outer bag is required.
Actual product compatibility should be verified through sample testing before equipment selection.
The Automatic Blister Bag Packing Machine Line can be configured around the customer's existing packaging process.
Possible options include:
Blister Only
For customers requiring primary blister packaging.
Blister + Pillow Bag
For customers requiring an additional outer protective bag.
Blister + Pillow Bag + Cartoning
For projects requiring further secondary packaging after the outer bag stage.
Additional inspection, weighing, metal detection or downstream packaging modules can be evaluated according to the product and production requirements.
KEDE provides the Automatic Blister Bag Packing Machine Line for manufacturers that want to connect primary blister packaging with secondary bag packaging in one production flow.
The equipment can be supplied with machine configuration based on the customer's product samples, blister dimensions, packaging materials and target output.
Before production, KEDE can evaluate the packaging process and confirm the required tooling and line configuration. Installation guidance, operating documentation and after-sales technical support are available for overseas buyers.
It combines blister packaging with automatic transfer and pillow bag packaging, allowing blister cards to move directly from the primary packaging section to the outer-bag packaging section.
It is mainly designed for tablets, capsules, granules and other small solid pharmaceutical or healthcare products. Selected food products can also be considered after testing.
The supplied specification lists a maximum speed of 150 punches/min. Actual output depends on the blister format, cavity arrangement and feeding configuration.
The outer bag provides an additional packaging layer that can help protect blister packs from dust, handling and environmental exposure. The actual protection depends on the selected film.
Yes. A servo-controlled transfer system connects the two sections and coordinates their operating speeds.
Yes. A cartoning section can be considered as a downstream module when the project requires blister → pillow bag → carton packaging.
Yes. The forming mold and punching configuration can be designed according to the required blister dimensions and cavity layout.
KEDE normally needs the product type, blister size, cavity arrangement, target output, forming material, aluminum foil specification and outer-bag requirements to recommend a suitable configuration.
