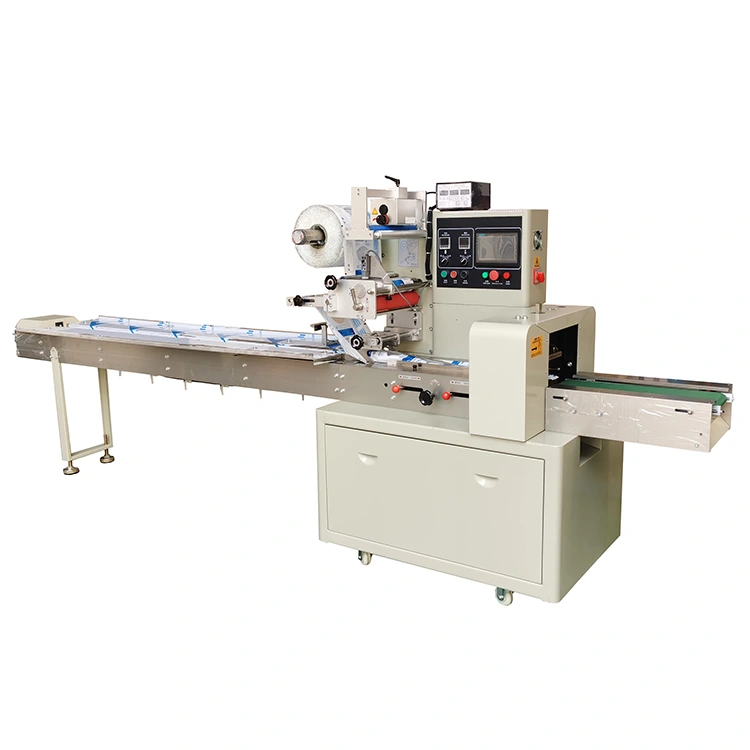

The main difference of our Automatic Top Film Feed Flow Packing Machine is its top film feeding structure. The film roll is installed above the feeding conveyor and guided downward around the product during packaging.
This arrangement works particularly well for blister cards, where the product can be conveyed horizontally in a controlled position before being wrapped with an outer film. It can also be used for biscuits, confectionery, soap and other solid products with relatively regular shapes.
The complete packaging cycle is handled automatically:
Product Feeding → Top Film Feeding → Film Forming → Longitudinal Sealing → End Sealing & Cutting → Finished Pack Output
The operator mainly needs to load products and packaging film, then set the required packaging parameters through the control panel.
For pharmaceutical and healthcare manufacturers, the machine can be placed after a blister packaging machine to add an outer protective bag around finished blister cards.
The blister card is transferred directly to the flow wrapping section, where the upper film forms around it before the longitudinal seam and end seals are completed.
This gives the blister card an additional layer of protection during handling, storage and transportation. It also allows manufacturers to combine primary blister packaging and secondary flow wrapping into a more continuous production process.
For higher-output lines, the feeding conveyor and transfer section can be configured according to the output and dimensions of the upstream blister machine.
|
Model |
ZB-350S |
ZB-450S |
|
Voltage |
AC220/50 |
AC220/50 |
|
Max roll width |
420mm |
450mm |
|
Power |
3KW |
3.5KW |
|
Fill thinkness |
0.012-0.05mm |
0.012-0.05mm |
|
Speed |
10-100(bag/min） |
10-100（bag/min） |
|
Bag length |
100-1000mm |
100-1000mm |
|
Bag width |
30-200mm |
30-225mm |
|
Bag height |
≤150mm |
≤150mm |
|
Machine size |
3770*900*1260mm |
4700*900*1260mm |
|
Machine weight |
450kg |
500kg |
The Automatic Top Film Feed Flow Packing Machine is mainly intended for solid products that can be fed steadily on a horizontal conveyor.
● Tablet and capsule blister cards
● Healthcare product blister packs
● Small solid medical products
● Biscuits
● Candy and confectionery
● Small cakes and pastries
● Other individually packed solid foods
● Soap
● Small household products
● Regular-shaped consumer goods
Product dimensions and feeding characteristics should be confirmed before ordering, especially for irregular or easily displaced products.
KEDE manufactures horizontal and blister packaging equipment for industrial buyers and can configure the machine according to the actual product rather than supplying only a standard machine.
Before production, buyers can provide:
● Product dimensions
● Blister card size
● Required bag size
● Packaging film
● Target production speed
Based on these details, KEDE can recommend the suitable model and arrange packaging testing when required.
Factory-direct supply, customized electrical specifications and technical support are available for overseas orders.
It is a horizontal flow wrapping machine in which the packaging film is fed from above the product conveyor. The machine automatically forms, seals and cuts the film around the product.
It is particularly suitable for blister cards and other regular solid products, including biscuits, confectionery, soap and selected healthcare products.
Yes. It can be used for the secondary outer-bag packaging of blister cards and can be connected with upstream blister packaging equipment.
Both ZB-350S and ZB-450S have a rated speed range of 10–100 bags/min. The actual speed depends on product size, bag length and feeding conditions.
The ZB-350S supports a maximum film roll width of 420 mm, while the ZB-450S supports up to 450 mm.
Yes. KEDE can adjust the feeding and transfer configuration according to the blister card dimensions, upstream machine output and required outer-bag size.
Yes. Product and film samples can be provided for packaging testing so that the suitable forming, sealing and feeding configuration can be confirmed before purchase.
Yes. KEDE supplies the machine directly from China and can provide technical documentation, commissioning guidance and after-sales support for overseas buyers.
