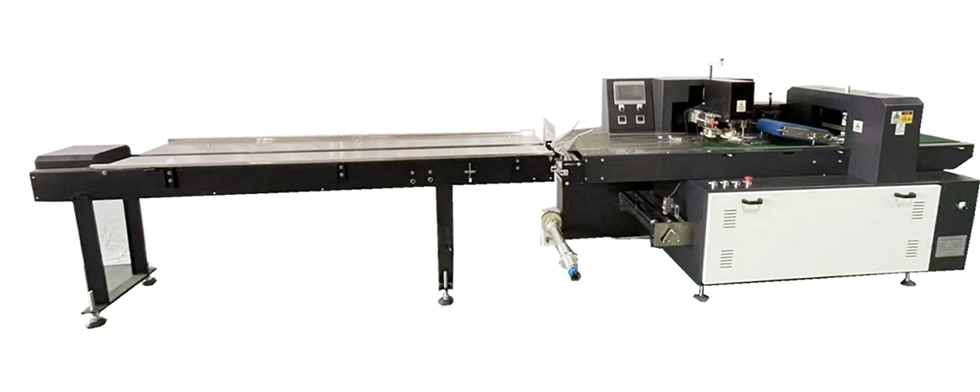

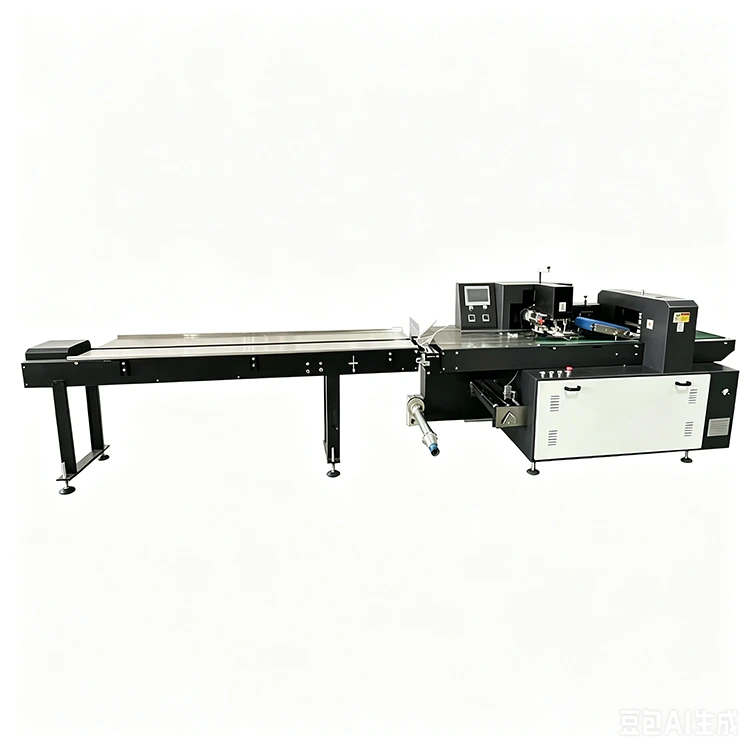

Automatic Multipurpose Flow Wrapping Machine

How the Machine Works

The Automatic Multipurpose Flow Wrapping Machine uses a continuous roll of packaging film to form a three-side sealed pillow bag around the product.

1. Film Feeding

The packaging film is installed on the film holder. Operators set the bag length, sealing temperature and running speed through the touchscreen.

2. Product Feeding

The conveyor moves products into the forming section at a controlled speed.

3. Film Forming & Longitudinal Sealing

The film wraps around the product and forms a tube. The overlapping edge is heat-sealed to create the back seal.

4. Transverse Sealing & Cutting

The cross-sealing unit seals both ends of the package and cuts the film into individual packs.

5. Product Discharge

The finished packages are transferred to the discharge conveyor for collection or the next production stage.

For printed film, a photoelectric tracking system can be used to align the packaging position with the printed mark.

One Machine for Different Product Formats

Our Automatic Multipurpose Flow Wrapping Machine is designed for manufacturers that package different solid products rather than one fixed product type.

Typical applications include:

● Food: biscuits, bread, cakes, candy, chocolate and snacks

● Daily Products: soap, toothbrushes, cleaning sponges and disposable items

● Stationery: pencils, erasers and stationery sets

● Hardware: screws, small tools, fittings and electronic components

● Consumer Products: small toys and other packaged goods

The adjustable bag length and width allow the machine to accommodate different product dimensions within its working range.



Parameters：

Model	ZB-350	ZB-450
Voltage	AC220/50	AC220/50
Max roll width	420mm	450mm
Power	3KW	3.5KW
Fill thinkness	0.012-0.05mm	0.012-0.05mm
Speed	10-100(bag/min）	10-100（bag/min）
Bag length	100-1000mm	100-1000mm
Bag width	30-200mm	30-225mm
Bag height	≤150mm	≤150mm
Machine size	3770*900*1260mm	4700*900*1260mm
Machine weight	450kg	500kg

Key Features

Adjustable Bag Size

The bag length can be adjusted from 100 to 1000 mm, while the maximum bag width is 200 mm  and 225 mm

Continuous Heat Sealing

Longitudinal and transverse sealing are completed continuously during operation, producing a consistent three-side sealed pillow package.

Photoelectric Film Tracking

For printed packaging film, the photoelectric tracking function helps maintain the correct position between the product and printed pattern.

Automatic Film Cutting

The cross-sealing knife completes sealing and cutting in one operation, separating finished packages from the continuous film.

Touchscreen Operation

Operators can adjust key parameters such as bag length, sealing temperature and running speed from the control interface.

Packaging Film Options

The Automatic Multipurpose Flow Wrapping Machine can be configured for suitable heat-sealing packaging films according to the product and package requirements. Common options include PE composite film, aluminum-plastic film, paper-plastic film and other compatible heat-sealing films.

The final film specification should be confirmed through product and packaging testing before machine production.



Technical Support & Factory Supply

KEDE provides machine selection, packaging testing, commissioning guidance and after-sales technical support for B2B buyers.

The machine can be supplied with the required electrical configuration for the destination market, together with operation documentation and technical instructions.



FAQ

What products can the Automatic Multipurpose Flow Wrapping Machine package?

It is suitable for many solid products, including biscuits, bread, candy, stationery, hardware, daily necessities and small consumer products.

What is the maximum packaging speed?

Our Automatic Multipurpose Flow Wrapping Machine have a rated speed range of 10–100 bags/min, depending on the product, film and package format.

Can the machine use printed packaging film?

Yes. A photoelectric tracking function can be used to detect the printed mark and adjust the film position during packaging.

Can the machine package different product sizes?

Yes. Bag length and width can be adjusted within the machine's specified working range. The feeding and packaging configuration can also be adapted to different products.

Can KEDE customize the machine?

Yes. KEDE can customize the machine configuration according to product dimensions, packaging film, bag size and production requirements.
