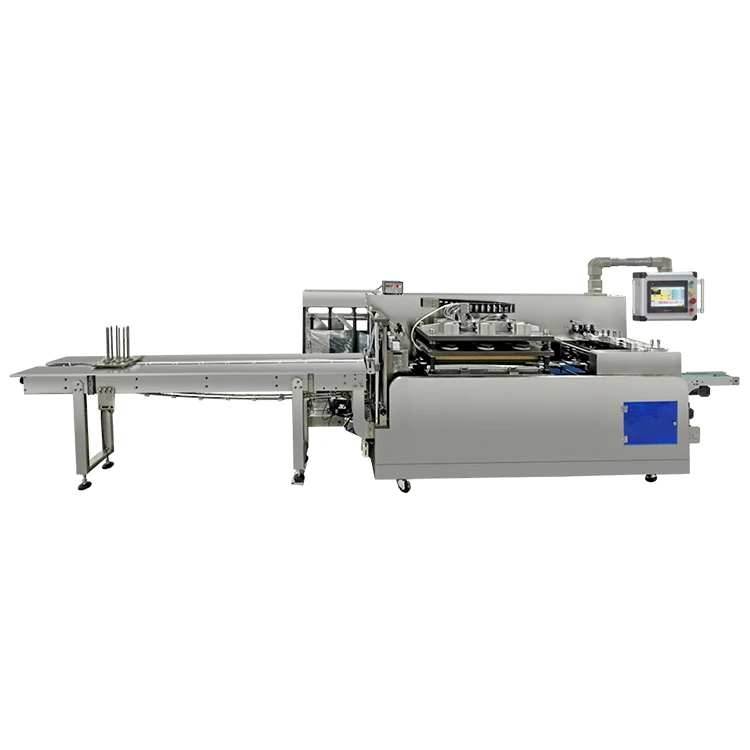

Automatic Four Side Sealing Packaging Machine

The Automatic Four Side Sealing Packaging Machine is a specialized automated equipment designed for high-precision small package sealing in the fast-moving consumer goods, disinfection products, and light daily chemical industries.

It differs from conventional back-sealing pillow-type packaging machines in that it adopts a four-sided synchronous heat sealing process. Through the complete adhesion and uniform compression sealing of the upper and lower film bodies, it completes the entire automated process of bag making, edge sealing, cutting, and product discharge in one step.

It is specifically tailored for flat, independent single-piece, and thin products, serving as the core main equipment for standardized sealing packaging of small items.

The entire machine adopts an integrated compact body design, with the contact parts of the material all made of 304 stainless steel, suitable for clean production environments. It also takes into account the stability of high-speed mass production and the regular sealing performance of small package products, widely adaptable to the large-scale production of various single-piece independent packaging products.

Dual Film Synchronous Feeding System

The overall operation logic of the equipment is precise and coherent. Relying on the core structure of dual film synchronous feeding, the upper and lower layers of packaging films are automatically unwound through independent film frames, combined with high-precision photoelectric deviation correction and tension closed-loop control systems.

This ensures that there are no problems such as film deviation, stretching wrinkles, or pattern misalignment throughout the process, guaranteeing the uniform and stable feeding of the packaging film.

Precise Four-Side Heat Sealing Process

In the material packaging stage, the equipment does not rely on the product's shape to form, but uses an exclusive forming structure to completely adhere and wrap the material with the double-layer film.

Using multiple sets of independent temperature-controlled heat sealing modules to synchronously seal the four edges of the packaging bag, combined with the water cooling rapid shaping process, the edge sealing is smooth and tight, with uniform thickness, effectively avoiding common problems such as leakage, insufficient sealing, and cracking.

After sealing, it is completed by a precise servo cutter for fixed-length cutting, combined with the online inkjet printing function, which can simultaneously print batch numbers, expiration dates, and production codes.

The entire process is automated and requires no manual intervention, only a small number of personnel for monitoring and inspection to ensure continuous mass production.

Better Sealing and Packaging Appearance

Compared to ordinary pillow-type packaging machines and three-sided sealing packaging machines, the Automatic Four Side Sealing Packaging Machine has unique structural and process advantages.

Its fully enclosed packaging structure completely achieves seamless sealing of the packaging bag, significantly improving water retention, air sealing, dust prevention, and moisture resistance performance. It is particularly suitable for small items containing liquids, prone to drying, and prone to moisture, effectively extending the shelf life of the products and solving the industry pain points of side openings and insufficient sealing of back-sealing machines.

The symmetrical four-sided sealing structure makes the finished bag shape square and flat, with no excess folds or exposed edges. The packaging appearance is exquisite and unified, with a visual display effect far exceeding that of ordinary packaging machines, suitable for brand display and market sales of packaged products.

PLC Control and Quick Product Changeover

The Automatic Four Side Sealing Packaging Machine is equipped with an intelligent PLC touch control system, with multiple product parameter formulas built-in, enabling one-click switching for different specifications of products.

The bag length, sealing temperature, running speed, and cutting accuracy can all be precisely and finely adjusted. The equipment has strong fault tolerance and high production changeover and debugging efficiency, perfectly adapting to the production needs of multiple categories, small batches, and frequent change orders.

Servo-Linked Control for Stable Production

In terms of production performance and adaptability, this equipment has significant advantages in operation stability and product compatibility.

The servo-linked control system realizes synchronous operation of the film feeding, sealing, cutting, and multiple axes, with low noise, low failure rate, and low production loss.

Even under high-speed operation, it can ensure consistent packaging accuracy for each package and a very low defect rate.

Wide Packaging Film Compatibility

The equipment has a wide adaptability to packaging materials, compatible with various mainstream packaging materials such as composite films, aluminum-coated films, aluminum foil films, and degradable films.

It can meet the regular packaging needs of ordinary civilian products and also adapt to high-demand packaging scenarios such as avoiding light, moisture, and corrosion.

At the same time, the equipment has precise adaptability to the shape of packaging materials, focusing on various flat, thin, and single-piece small items, without causing problems such as empty packages, material clamping, or edge deviation due to the lightness, softness, and small size of the materials.

Applications for Flat and Single-Piece Products

With its excellent sealing performance and exquisite packaging effect, the automatic four-side sealing packaging machine is highly focused on niche high-quality application scenarios.

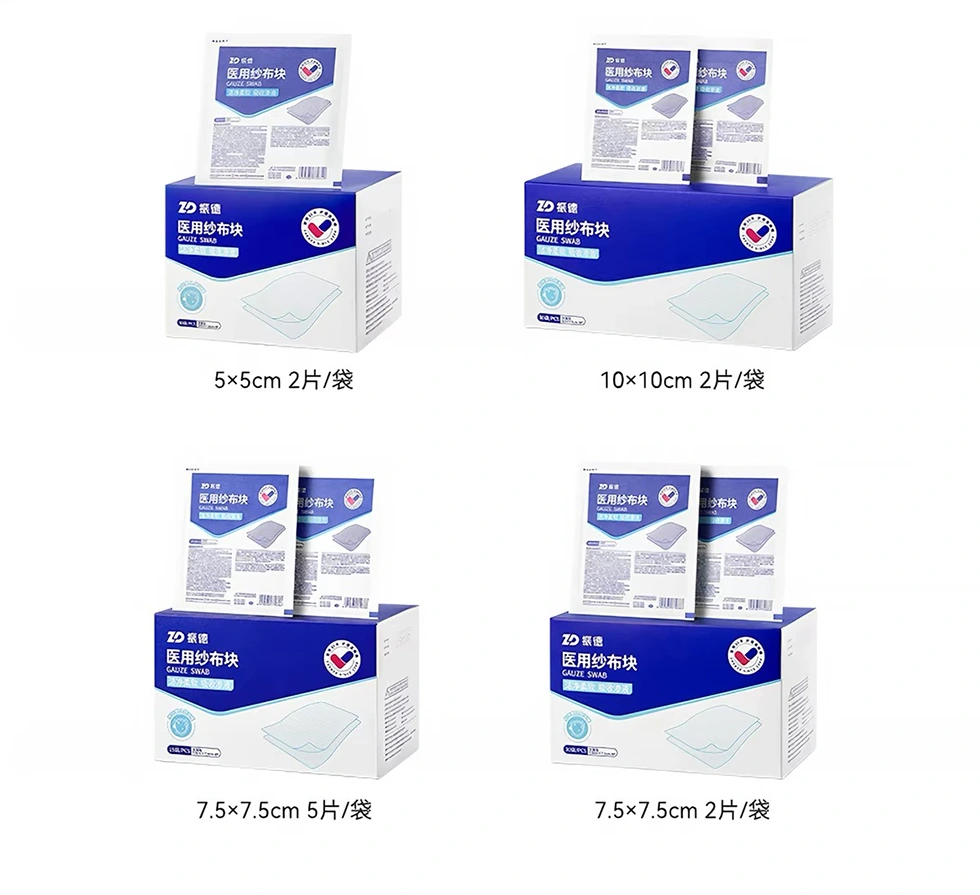

It is mainly suitable for single-plate wet wipes, alcohol disinfection sheets, makeup wipes, disposable facial cleansing wipes, etc., as well as various hygiene and disinfection products.

At the same time, it is widely used in disposable masks, ear loops, medical pads, heat patches, aroma patches, disposable tableware accessories, small-scale daily care patches, and other various flat and independent small items for packaging production.

Whether it is one-time portable products for hotels, airlines, or food delivery, or branded and high-quality small items for supermarket retail, this equipment can complete standardized and high-quality packaging processing.

Core Advantages for Small Package Production

Compared with common packaging equipment on the market, the core differentiation value of the automatic four-side sealing packaging machine lies in "specializing in small packages, specializing in sealing, and specializing in appearance".

It abandons the redundant structure, poor sealing, and rough finished products of general models, and adopts a targeted four-side sealing process to balance the four core requirements of high-speed mass production, clean production, long-term sealing, and exquisite appearance.

It not only meets the low-cost mass production requirements of civilian fast-moving consumer goods, but also conforms to the clean sealing production standards of the medical and disinfection categories.

It is the core production equipment with both cost-effectiveness and professionalism in the field of independent packaging of small items.
