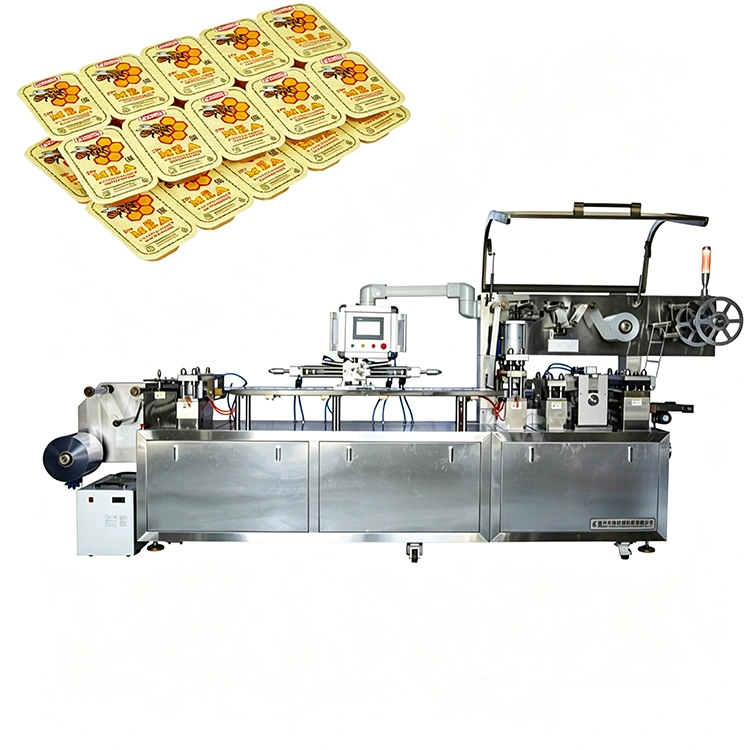

Unlike standard blister machines designed mainly for tablets or small solid products, this Automatic Food Blister Packaging Machine is configured for food products that need to be portioned into individual sealed packs.
The flat-plate working structure keeps forming, filling and sealing operations in a compact layout. The forming travel can be adjusted according to the package size, while the mold is installed in a groove structure for easier replacement.
For different food products, KEDE can customize the mold and feeding arrangement to match the required cavity shape and filling method.
The exact configuration depends on the product and feeding method, but the basic process follows the flat-plate blister packaging principle.
The selected packaging material is heated and formed through the blister mold to create individual cavities.

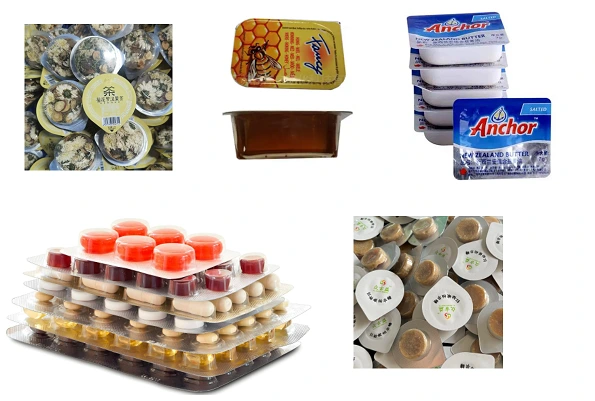

Jam, honey, butter, sauce or other suitable food products are loaded into the formed cavities. The feeding method can be configured according to product characteristics and required output.
A lidding material is applied and sealed over the filled cavities to produce individually enclosed food portions.
The continuous blister web is cut into individual packages according to the required format.
A batch printing device can be added when production requires batch numbers or other identification information.
A waste collecting device is available as an option to simplify handling of the remaining packaging material.
Jam, honey, butter and sauce do not always behave the same way during filling. Viscosity, portion size, cavity shape and required production speed can all affect the feeding arrangement.
For this reason, KEDE does not use one fixed mold and feeder configuration for every food blister application.
The Automatic Food Blister Packaging Machine can be designed according to the customer's product, package dimensions and production requirements. Samples can be evaluated before the final configuration is confirmed.
This is particularly useful for food manufacturers producing different portion sizes or several products on the same packaging line.
|
Packaging Material |
Typical Consideration |
|
ALU-PVC |
Combines a formed PVC cavity with aluminum lidding and is suitable for conventional blister structures |
|
ALU-ALU |
Provides a stronger barrier structure where higher protection is required |
|
PET |
Suitable when product visibility and material appearance are important |
|
PP |
Used for applications requiring polypropylene packaging |
|
PS |
Available for suitable blister packaging applications based on product and sealing requirements |
The final material combination should be confirmed according to the food product, sealing requirements and target market regulations.
The machine can be configured beyond the standard packaging setup.
Adds a tear line to the blister package to make individual portions easier to separate and open.
Provides inline batch or production information on the package according to the selected printing configuration.
Collects the remaining material after cutting, reducing manual handling around the machine.
These options allow buyers to specify the machine according to the actual production process instead of paying for unnecessary equipment.
|
Parameter |
Specification |
|
Machine Type |
Automatic Flat-Plate Food Blister Packaging Machine |
|
Suitable Products |
Jam, honey, butter, sauce and similar food products |
|
Packaging Materials |
ALU-PVC, ALU-ALU, PET, PP, PS |
|
Control System |
Microcomputer control |
|
Speed Adjustment |
Frequency speed control |
|
Feeding |
Automatic feeding system available |
|
Forming |
Positive-pressure forming |
|
Mold |
Groove-mounted, replaceable |
|
Optional Device |
Easy-tearing line, batch printing, waste collecting |
|
Mold Configuration |
Designed according to product and package requirements |
KEDE Machinery manufactures blister packaging equipment in China and provides direct technical support for machine selection, configuration and commissioning.
For buyers comparing machines from different suppliers, the important point is not only the machine price. Mold configuration, feeding stability, material compatibility and after-sales support can have a direct effect on the final production result.
KEDE can evaluate the customer's food product and packaging requirements before confirming the machine configuration and quotation.
It is mainly designed for portioned food products such as jam, honey, butter and sauce. The final suitability depends on product viscosity, portion size and filling requirements.
The machine can be configured for ALU-PVC, ALU-ALU, PET, PP and PS materials according to the required packaging structure.
Yes. The blister mold can be designed according to the product size, cavity shape, portion volume and package layout.
Yes. KEDE can configure the feeding system according to the characteristics of the food product and the required production method.
An easy-tearing line pressing device, batch printing device and waste collecting device can be added according to the production requirements.
Yes. KEDE supplies the Automatic Food Blister Packaging Machine directly from its factory in China and can provide machine configuration and technical support for B2B orders.
