Powder is not always easy to handle. Lightweight materials can create dust, while some powders tend to bridge or form small lumps.
The machine uses a screw dosing system to control powder feeding. Screw speed can be adjusted according to the characteristics of the material and required filling quantity.
This makes the system suitable for different powder conditions, including fine, lightweight and less free-flowing materials.
At the filling station, a dust-control arrangement helps reduce powder escaping into the working area. After filling, the pouch opening can be leveled before sealing to reduce powder remaining around the seal.
This is important because powder trapped in the sealing area can affect the finished pouch.
Instead of forming a bag from a roll of film, the machine works with prepared pouches.
The basic sequence is:
Pouch Picking → Pouch Opening → Powder Dosing → Filling → Pouch Cleaning → Sealing → Discharge
Coding can also be incorporated into the packaging process according to the machine configuration.
The operator mainly needs to replenish pouches and powder material while the machine handles the repetitive packaging operations automatically.
The main machine body uses 304 stainless steel, with material-contact areas designed for easier cleaning.
For powder applications, cleaning is particularly important when changing from one product to another. Powder residue around the hopper, screw and filling area can otherwise become a source of material mixing.
The relevant screw and storage components can be removed for routine cleaning and maintenance.
This makes the machine suitable for production environments where product changeovers and hygiene control are regular requirements.

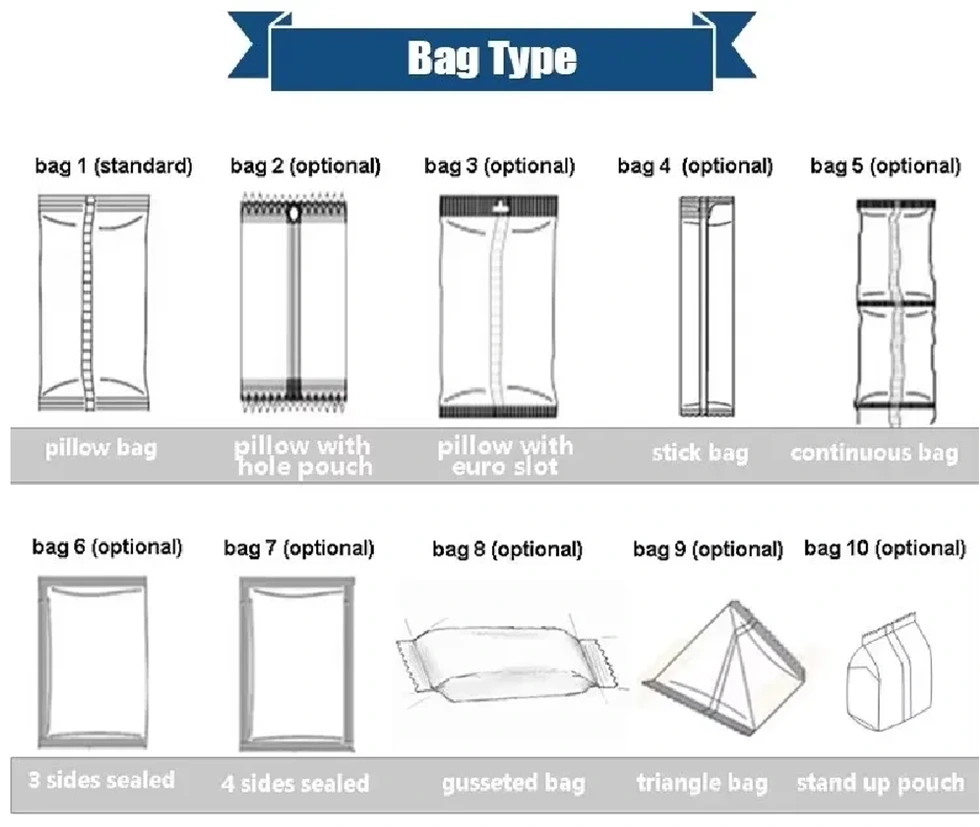

One of the reasons to choose a Automatic Powder Pouch Packing Machine is the freedom to select the final bag style.
The actual pouch material and format should be confirmed according to the powder characteristics, filling quantity and storage requirements.
|
Model |
EC-300 |
EC-420 |
EC-500 |
EC-620 |
EC-720 |
|
Maximum width of bag |
150mm |
200mm |
240mm |
300mm |
350mm |
|
Maximum length of bag |
180mm |
320mm |
300mm |
380mm |
480mm |
|
Maximum width of roll film |
300mm |
420m |
500mm |
620mm |
720mm |
|
Capacity |
30-50 bags/min |
30-50 bags/min |
30-50 bags/min |
30-50 bags/min |
30-50 bags/min |
|
Total Power |
2.5KW |
3.5KW |
3.5KW |
4.5KW |
4.5KW |
|
Dimension |
1050*1000*1820mm |
1335*1150*1170mm |
1420*1160*1480mm |
155*1260*1680mm |
1895*1480*1900mm |
|
Air consumption |
0,3 m3/min,0.6 MPa |
0.4 m3/min,0.6 MPa |
0.4 m3/min,0.6 MPa |
0.6 m3/min,0.6 MPa |
0.6 m3/min,0.6 MPa |
The Automatic Powder Pouch Packing Machine can be used for a range of powdered products, including:
Food: seasoning powder, meal replacement powder, milk powder and similar products.
Pharmaceutical & Herbal: herbal powder and suitable medicinal powder products.
Agricultural: water-soluble fertilizer and other powdered agricultural products.
Daily Chemical: cleaning powder and other suitable powdered formulations.
For pharmaceutical and food applications, the final machine configuration should be selected according to the product characteristics and required production standards.
For manufacturers selling higher-value powder products, the finished pouch can offer advantages beyond basic containment.
You can choose the pouch appearance, add a zipper, use different composite structures and adjust the bag format to suit the retail product.
At the same time, the Automatic Powder Pouch Packing Machine avoids the film-forming stage required by traditional roll-film powder packaging.
That makes the premade pouch approach particularly interesting for manufacturers that care about both powder filling efficiency and finished pouch presentation.
It is designed for pre-made pouches, including suitable stand-up, zipper, flat and four-side sealed pouch formats.
Yes. This machine uses finished pouches instead of forming bags from a roll of film, so the pouch style can be selected separately according to the product requirements.
The machine uses a screw-based dosing system. Screw speed can be adjusted according to the powder and required filling quantity.
The filling section includes dust-control measures to help reduce powder dispersion. The actual configuration should be selected according to the characteristics of the powder.
The listed capacity is 30–50 bags/minute, depending on the machine model and actual product and pouch conditions.
The main selection factors are pouch width, pouch length and filling requirements. Send KEDE your pouch size and target filling weight for model selection.
Yes. KEDE can configure the powder pouch packing machine according to the powder, pouch dimensions, filling quantity and production requirements.
