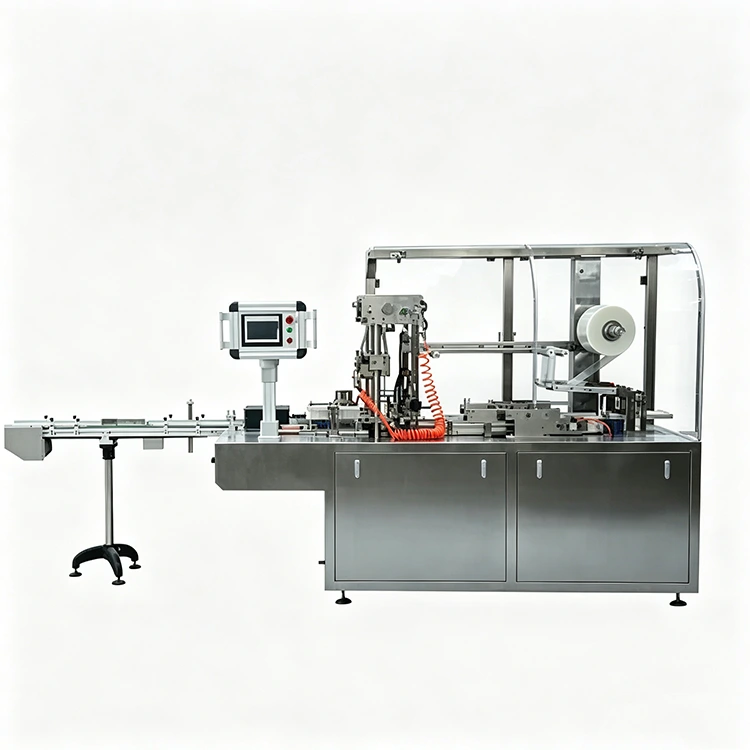

The Automatic Three-dimensional Overwrapping Machine for Box Packaging combines the main overwrapping operations into one continuous process:
Feeding → Film Unwinding → Film Positioning → Folding → Corner Forming → Heat Sealing → Cooling → Discharge
PLC control and servo-driven functions coordinate the packaging process. Operators can adjust important parameters through the HMI, including film length, conveying speed and sealing temperature.
For different carton specifications, adjusted parameters can be saved and recalled when the same product is produced again. This is useful for manufacturers handling multiple box sizes or product SKUs.
|
Model |
TMP-300E |
TMP-400E |
|
Packaging Material |
OPP,BOPP , PVC |
|
|
Production Capacity |
5-30 package/minute |
|
|
Bag Size |
L(50-300)* W(40-220)* H(10-90)mm |
L(50-400)* W(40-250)* H(10-90)mm |
|
Power Supply |
AC380V 50Hz, 6.5Kw |
|
|
Working Pressure |
0.6 Mpa |
|
|
Air Consumption |
400L/min |
|
|
Weight |
750kg |
850kg |
|
Outline Dimensions(mm) |
2450*900*1750mm |
2450*1000*1750mm |
|
Size Of Feed Table(mm) |
1650*320*930 |
|
The TMP series can operate as an independent overwrapping machine or be connected with other packaging equipment.
For a fully automated process, it can be arranged after equipment such as a cartoning machine:
Cartoning → Coding → Three-Dimensional Overwrapping → Discharge
This reduces manual handling between packaging stages and provides a continuous solution for the final outer wrapping process.
The machine frame uses powder-coated carbon steel, with stainless steel used in selected areas. The film-contact and conveying sections are designed for convenient cleaning and routine maintenance.
The equipment uses PLC and servo control, with operating parameters managed through the touch-screen interface.
For pharmaceutical applications, the final machine configuration and workshop conditions should be evaluated according to the customer's specific production and GMP requirements.
The Automatic Three-dimensional Overwrapping Machine for Box Packaging is mainly used for regular rectangular cartons in industries such as:
Medicine boxes, capsule boxes, health supplement cartons and other suitable healthcare packages.
Facial mask boxes, skincare packages, sample boxes and small cosmetic gift sets.
Chewing gum, chocolate, snack cartons and tea gift boxes.
The machine can also be considered for cultural products and other regularly shaped small cartons requiring transparent outer wrapping.
KEDE manufactures automated packaging equipment for food, cosmetics, pharmaceutical and other industries.
For three-dimensional overwrapping projects, KEDE can provide equipment configuration based on:
Box Size + Film Material + Packaging Process + Required Speed
The company supports standard equipment as well as customized packaging machinery. Its services cover machine production, commissioning, technical training and after-sales support.
KEDE has obtained CE certification and ISO 9001 quality management system certification, with utility model patents covering certain core machine components.
It is mainly designed for regular rectangular boxes, including pharmaceutical cartons, cosmetic boxes, facial mask boxes, health product packages, chewing gum boxes and chocolate cartons.
The TMP series supports OPP, BOPP and PVC film.
The main difference is the applicable box size. TMP-300E supports lengths up to 300 mm, while TMP-400E supports lengths up to 400 mm.
Yes. It can be used as a downstream overwrapping unit and connected with compatible packaging equipment to form an automated production line.
Yes. A tear-line application mechanism can be configured according to the packaging requirements.
Yes. KEDE can customize packaging equipment according to product dimensions, film material and required packaging process.
