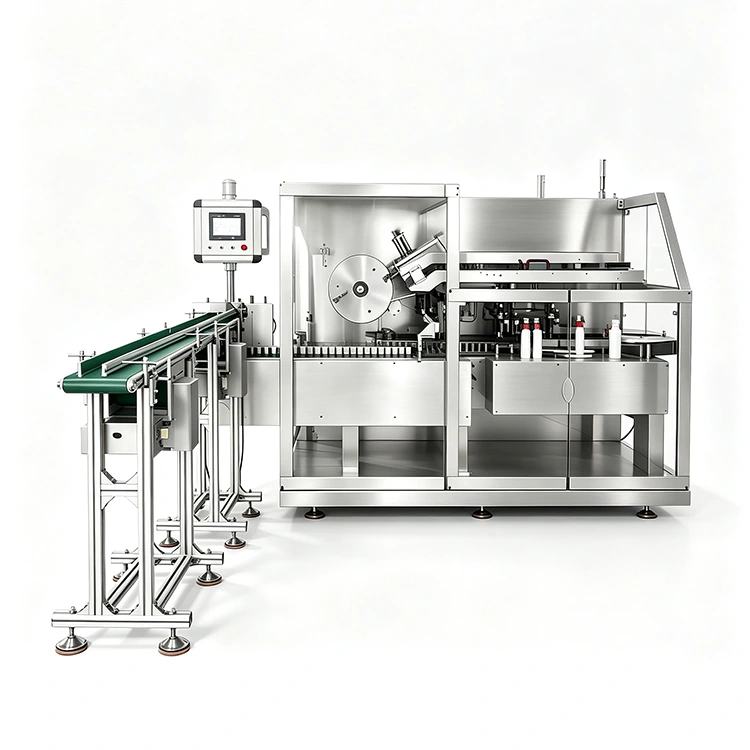

The Automatic Tube Cartoning Machine integrates with your existing tube filler via conveyor, eliminating manual handling. We'll test your sample tubes on our demo line before you commit—just send us a few empty cartons and tubes.
|
Model: |
KDZ-130 |
|
Speed： |
30-80boxes/min |
|
Box size(L*W*H)： |
（70-250)*(25-100)*(12-90)mm |
|
Boxpapermaterial： |
250~450g/㎡ |
|
Main motor power： |
1.5 kw |
|
Power supply： |
380V 50Hz |
|
Work pressure： |
0.5 Mpa, 0.6 m³/h |
|
Compressed gas consumption: |
0.5-0.8 m³/h |
|
Dimensions(length×width×height): |
3700(L)×1500(W)×1900mm(H) |
|
Machine weight： |
2000 kgs |
|
Add safety cover |
|
|
Special Size Customization |
|
Inkjet coder – integrated into the outfeed conveyor for date, batch, or lot code printing on each carton
Leaflet folder & inserter – automatically folds and inserts product leaflets or instruction sheets before flap closing
Hot-melt glue sealing – for cartons requiring glued closure instead of tuck flaps
Custom infeed configurations – match your upstream production line discharge height and orientation
Our engineers work with you to specify the exact configuration – no forced add-ons, no hidden "required" options.
Most machines use a fixed pusher. If your product is odd-shaped — bottles, cups, irregular packs — it shifts or gets scratched.
KDZ-130 Automatic Tube Cartoning Machine has adjustable pusher timing and wider guide rails. It holds different shapes steady. Fewer jams.
Many cartoners need someone to manually transfer products from the previous line — extra labor, extra step. Automatic Tube Cartoning Machine hooks directly to your filler or conveyor. Product comes in and goes straight through. No middleman.
Lower-tier machines use painted carbon steel. Over time, edges rust — especially in wet or washdown areas. This one is full stainless steel. Water-resistant, easy to clean, and GMP-compliant without arguments.
Lightweight board often creases or tears on generic machines — high reject rate.
The folding mechanism on KDZ-130 is precise. Boxes come out square, flaps fold cleanly, no board damage.
Others take 30–45 minutes, with multiple adjustments across different points.
Automatic Tube Cartoning Machine takes 15–20 minutes, using basic hand tools. Recipes are stored on the HMI — next time, just recall.
On most machines, adding a coder, leaflet inserter, or glue unit means structural changes.
Automatic Tube Cartoning Machine has options ready — coder, inserter, glue, custom infeed — you name it.
Not just "we meet the standards."
CE certified, ISO 9001:2000, and they give you a full documentation package — useful for audits and export.
Others look cheaper upfront. But you pay later — more downtime, more rejects, more repairs.
Automatic Tube Cartoning Machine is factory-direct pricing. Upfront is fair, but the real saving is in running cost — fewer stops, less waste, longer uptime.
We don’t just hand you a standard cartoner with a new sticker on it. Take the KDZ-130: its feeding system is designed to handle *your* product—not just the one in our brochure. We tailor it based on what we learn from your samples and real-site testing.
Since we’re the manufacturer, we keep tight control over quality, delivery times, and costs. You’re paying for the machine, not for layers of distribution markups.
The KDZ-130 is already running on multiple lines across Southeast Asia, Europe, and South America—regular 8- to 10-hour shifts with stable, reliable output.
Before shipping, we run your actual products and carton samples through the machine. If something doesn’t work, we’ll tell you upfront—and fix it—before you release the final payment. No surprises.
We deliver responsive, expert and thoughtful after-sales support within 24 hours for all clients. Our goal is to guarantee stable operation, full functionality and safe performance of your equipment.
We built a comprehensive after-sales framework. The team consists of an after-sales center, local service outlets, field service engineers and dedicated customer support staff.
We offer standardized maintenance arrangements covering warranty duration, covered warranty items, service charge standards and maintenance specifications.
We provide systematic professional training. The training covers learning targets, course content, teaching approaches, as well as assessment and testing standards.
