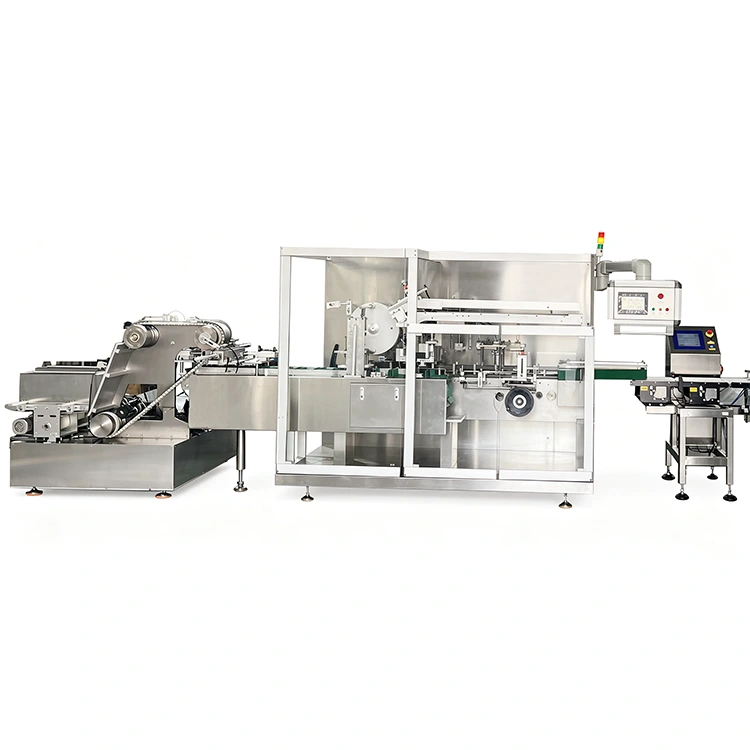

KEDE's Automatic Stationery Cartoning Machine is designed to automate the process of loading stationery products into cartons and completing carton sealing. It is suitable for manufacturers and packaging companies looking to reduce repetitive manual cartoning operations while maintaining consistent packaging efficiency.
The machine adopts PLC automatic control and frequency conversion speed regulation, allowing operators to manage key machine functions through a touchscreen interface. Electrical components can be equipped with internationally recognized brands according to the machine configuration, supporting reliable operation for continuous packaging applications.
The Automatic Stationery Cartoning Machine can be configured to handle a variety of stationery products and packaged items, including:
● Pens, mechanical pencils and markers
● Erasers and sharpeners
● Glue sticks and tape rolls
● Rulers and small stationery sets
● Blister-packed items such as refill cartridges and compass sets
Different feeding and cartoning configurations can be considered according to product dimensions, carton specifications and production requirements.
|
Model: |
KDZ-130 |
KDZ-80 |
|
Speed: |
≤80boxes/min |
≤80boxes/min |
|
Boxsize(L*W*H): |
(70-250)*(25-100)*(12-90)mm |
(70-150)mm*(25-100)mm *(12-80)mm |
|
Instruction book:(optional ) |
Paper material:50-70g/m2 |
|
|
Unfolded size range:(80-300)mm*(70-210)mm |
||
|
Folded size range: 1-4 folded(70-210)mm X(20-40)mm |
||
|
Box paper material: |
250~450g/m2 |
250~450g/m2 |
|
Main motor power: |
1.5 kw |
1.5 kw |
|
Power supply: |
380V 50Hz(220V 60 Hz) |
380V 50Hz(220V 60 Hz) |
|
Work pressure: |
0.5Mpa,0.6m³/h |
0.5Mpa,0.6m³/h |
|
Compressed gas consumption: |
≥0.9m³3/h |
≥0.9m³3/h |
|
Dimensions(length×width×height): |
3700(L)×1500(W)×1900mm(H) |
3700(L)×1500(W)×1900mm(H) |
|
Machine weight: |
18000 Kg |
1800 Kg |
|
Special Size Customization |
||

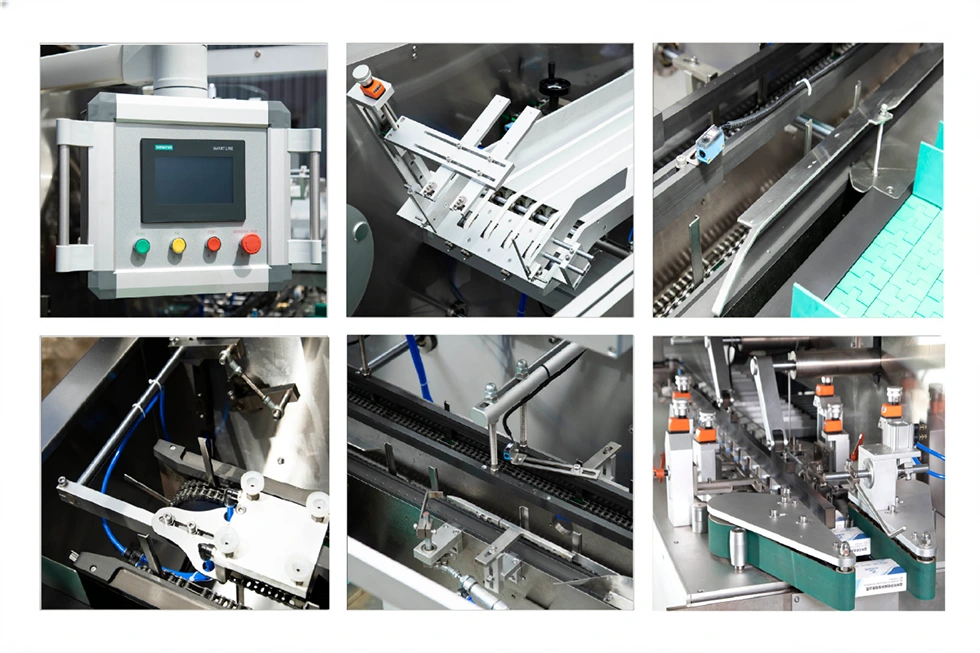

We design different feeders for different stationery products, an accurate counting system, and customize the appropriate push rods to ensure that the items maintain the correct direction during the transportation process, avoiding blockages caused by product misalignment.
Stationery boxes often use lighter board (250–300g/m²) for retail appeal, but some export cartons go up to 450g/m² for durability. Our feeder system has a variable friction clutch—you dial in the pressure based on your board weight. Too much pressure and it feeds double; too little and it misses. We set this during installation, but it's easy to tweak later.
If you include instruction sheets, promo cards, or warranty info, both the KDZ-130 and KDZ-80can handle unfolded sizes from (80–300)mm × (70–210)mm, folded down to (70–210)mm × (20–40)mm. The folding roller gap is adjustable—critical for different paper weights (50–70g/m² is standard). We've seen cheaper machines tear thin paper or jam on folded stacks; ours has an independent tension control to avoid that.
Photoelectric sensors check each box after insertion. If the product isn't there, or the flap didn't close properly, the machine kicks it out on a separate chute. No manual spot-checking needed. On the KDZ-130, this runs at 80 boxes/min and still catches >99.5% of defects—we've tested it with actual production batches.
Stationery products vary considerably in size, shape and packaging format. KEDE can adjust the machine configuration according to the customer's product characteristics and carton requirements, making the equipment suitable for both standard stationery products and specific packaging applications.
For buyers planning to automate an existing packaging process, the machine can be used as an independent cartoning unit or integrated with upstream and downstream equipment to form a more complete packaging line.
Send Your Product Details
For a suitable machine configuration, buyers can provide:
Product type · Product dimensions · Carton size · Packaging format · Required production capacity · Product photos or samples
Contact KEDE for a customized Automatic Stationery Cartoning Machine solution and quotation.
A: They can pack industrial parts, medical consumables, daily goods and other regular products with different sizes.
A: Yes. It adopts PLC control system. Workers can master the operation with simple training.
A: Yes. Most models support mold replacement and can adapt to multiple product sizes.
A: Sure. It can work alone or connect with other machines to form a full production line.
A: Yes. It can add date printing, batch number coding and manual insertion devices as options.
A: Just change the molds and adjust simple parameters. No complicated setting is needed.
A: Definitely. It reduces manual work, lowers error rate and improves overall productivity.
A: We provide machine installation guidance, operation training and long-term technical support.
