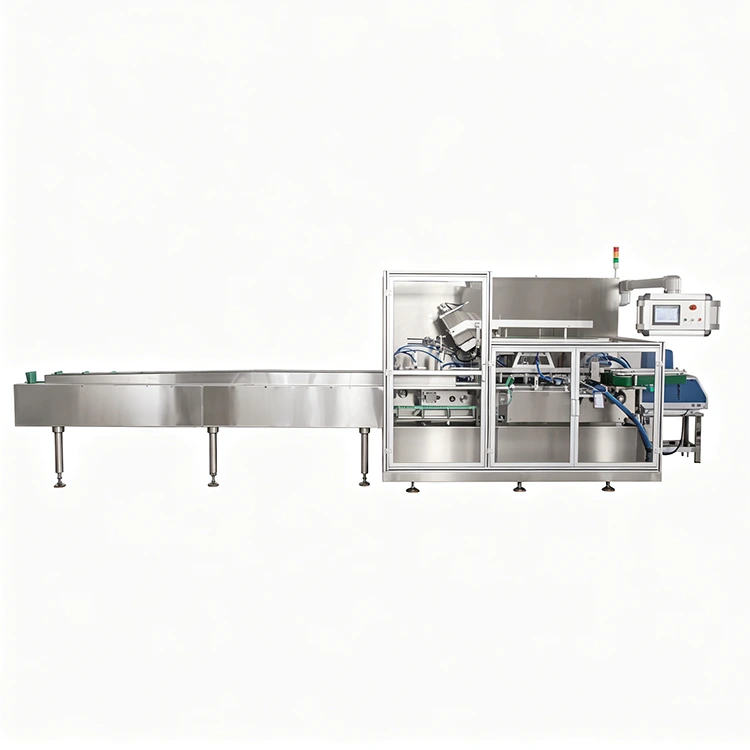

The Automatic Sheet Cartoning Machine integrates automatic feeding, pouch positioning, carton opening, product pushing, flap folding and sealing into a continuous packaging process. With a stainless steel construction and configurable functions, it is suitable for cosmetic, personal care and selected food or healthcare packaging applications.
|
Model: |
KDZ-130 |
|
Speed： |
30-60boxes/min |
|
Box size(L*W*H)： |
（70-250)*(25-100)*(12-90)mm |
|
Boxpapermaterial： |
250~450g/㎡ |
|
Main motor power： |
1.5 kw |
|
Power supply： |
380V 50Hz |
|
Work pressure： |
0.5 Mpa, 0.6 m³/h |
|
Compressed gas consumption: |
0.5-0.8 m³/h |
|
Dimensions(length×width×height): |
3700(L)×1500(W)×1900mm(H) |
|
Machine weight： |
2000 kgs |
|
Add safety cover |
|
|
Special Size Customization |
|
Flexible pouches can be more difficult to carton than rigid products because they may wrinkle, shift or change orientation during feeding. The KDZ-130 addresses this handling issue with a multi-stage positioning conveyor that flattens and aligns each pouch before the pushing stage.
This configuration helps maintain a more consistent product position during carton loading, reducing interruptions caused by poorly aligned pouches. It is particularly suitable for facial mask pouches and similar sheet-based or flexible packaged products.
The KDZ-130 can also be connected with upstream pouch filling or feeding equipment, allowing products to move directly into the cartoning process with less manual handling.
The Automatic Sheet Cartoning Machine is particularly suited to cosmetic and personal care products supplied in flexible pouches. Facial mask pouches can be fed, positioned and pushed into cartons automatically, creating a continuous process from pouch handling to finished carton.
Depending on the selected configuration, the machine can also be adapted for other flexible products with different dimensions and feeding requirements.
Typical applications include:
● Facial mask pouches
● Cosmetic sample pouches
● Personal care samples
● Flexible healthcare products
● Selected food and household products
The actual product size, pouch material and carton specifications should be confirmed before machine configuration.
The cartoning process is coordinated through a PLC-based control system and includes several synchronized stages:
Feeding → Pouch Positioning → Carton Opening → Product Pushing → Flap Folding → Carton Sealing
The positioning conveyor is particularly important when handling soft or flexible pouches. Rather than pushing an uncontrolled pouch directly toward the carton, the system provides an intermediate positioning stage to improve feeding consistency.
An integrated frequency drive allows the operating speed to be adjusted according to product and carton conditions. This gives operators greater flexibility when working with different pouch materials or carton board specifications.
The multi-stage conveyor helps align and flatten flexible pouches before cartoning, supporting more consistent product placement.
A PLC control system coordinates feeding, pushing, carton opening, folding and sealing. The HMI touchscreen provides an interface for machine operation and parameter adjustment.
The Automatic Sheet Cartoning Machine uses a stainless steel frame suitable for applications where cleanliness and easy maintenance are important, including cosmetic and personal care packaging environments.
Depending on the machine configuration, electrical components can be selected from recognized brands such as Schneider, Siemens and Omron or equivalent components.
With a rated speed of 30–60 boxes/min, the Automatic Sheet Cartoning Machine is designed for continuous automatic cartoning and can be integrated into an upstream packaging process.
Packaging projects rarely use exactly the same pouch and carton specifications. KEDE can configure the Automatic Sheet Cartoning Machine according to the product dimensions, feeding arrangement and required packaging process.
|
Customization Area |
Available Configuration |
|
Infeed height |
Adjusted to connect with upstream fillers or conveyors |
|
Product orientation |
Rotation, alignment or positioning before pushing |
|
Feeding arrangement |
Customized feeding assemblies according to product requirements |
|
Carton dimensions |
Special carton sizes can be evaluated |
|
Product handling |
Adapted to different pouch dimensions and formats |
|
Line connection |
Integration with upstream filling or feeding equipment |
|
Safety configuration |
Additional safety cover available |
For non-standard projects, KEDE can evaluate the product sample, pouch dimensions and carton drawings before recommending the machine configuration.
The Automatic Sheet Cartoning Machine can be equipped with additional functions according to the customer's packaging requirements.
An inkjet coder can be added for printing batch numbers, dates or other required identification information.
A leaflet inserter can be configured when product instructions or promotional materials need to be placed inside the carton.
For products with unusual dimensions or feeding characteristics, the infeed section can be modified to improve product transfer into the cartoning machine.
These options can be discussed during the technical quotation stage according to the final packaging process.
The Machine can be connected with upstream pouch filling or feeding equipment to reduce manual product transfer.
A typical production flow can be arranged as:
Pouch Filling → Pouch Discharge → Positioning → Cartoning → Coding / Leaflet Insertion → Finished Carton
The exact line configuration depends on the upstream equipment, product dimensions and required production speed. KEDE can evaluate the connection requirements during the project design stage.
WENZHOU KEDE MACHINERY TECHNOLOGY CO., LTD. is a packaging machinery manufacturer specializing in the development, production, customization and assembly of automated packaging equipment.
The company operates standardized production and assembly facilities with capabilities covering precision processing, machine assembly and equipment testing. Its technical team provides support throughout equipment selection, configuration, commissioning and after-sales service.
KEDE holds CE certification and ISO 9001 quality management system certification, while core packaging machine components are supported by utility model patents.
For overseas projects, KEDE can provide technical documentation, installation and commissioning support, operator training and remote technical assistance.
KEDE combines machine manufacturing with application-oriented packaging support. For buyers sourcing an automatic sheet cartoning machine from China, the service covers more than equipment supply.
The project can include:
● Machine configuration based on product and carton specifications
● Customized feeding arrangements
● Optional coding and leaflet insertion
● Factory testing before shipment
● Technical documentation and operating guidance
● Installation and commissioning support
● Remote after-sales assistance
● Export packaging and worldwide shipment
This approach allows buyers to evaluate the machine according to their actual packaging process rather than selecting equipment from a fixed standard configuration.
The Machine is mainly designed for flexible pouch products, including facial mask pouches, cosmetic samples and similar flat or soft-packed products. Product dimensions and packaging materials should be confirmed before configuration.
A multi-stage positioning conveyor helps flatten and align each pouch before it is pushed into the carton. This reduces problems caused by wrinkling or incorrect pouch positioning during feeding.
Yes. The infeed section can be configured to connect with upstream pouch filling or feeding equipment, helping reduce manual product transfer between processes.
The standard carton range is 70–250 mm in length, 25–100 mm in width and 12–90 mm in height. Special carton sizes can be evaluated according to the project requirements.
Yes. KEDE can evaluate pouch dimensions, product orientation and feeding requirements to determine suitable conveyor and feeding configurations.
Yes. An inkjet coder and leaflet inserter are available as optional configurations. Other feeding or packaging functions can also be discussed according to the production process.
Please provide the pouch dimensions, carton dimensions, product samples or drawings, desired production speed and any existing upstream equipment. These details allow KEDE to recommend a suitable configuration.
KEDE provides technical documentation, remote technical assistance and installation or commissioning support for overseas projects. On-site service can also be discussed according to the project requirements.
