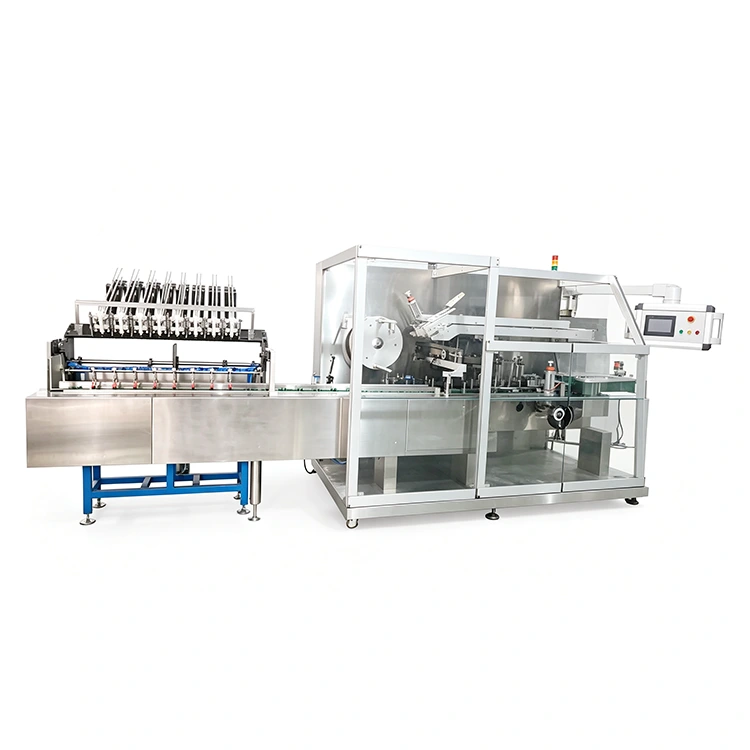

The Automatic Cutlery Cartoning Machine runs fully automatic once it's set up: it erects blanks from the magazine, the operator loads the cutlery components onto the infeed, then the unit pushes the bundle into the carton, folds the flaps, and — if you opt for the glue system — applies hot melt seal before ejecting the finished pack. If you're running lock-style cartons, you can run without glue.
Construction is stainless steel cladding over a reinforced, vibration-damped frame. We've had these running 10-hour shifts in active food plants without hygiene issues or mechanical drift.
|
Technical Parameters: |
||
|
Model: |
KDZ-130 |
KDZ-80 |
|
Speed: |
≤80boxes/min |
≤80boxes/min |
|
Boxsize(L*W*H): |
(70-250)*(25-100)*(12-90)mm |
(70-150)mm*(25-100)mm *(12-80)mm |
|
Instruction book:(optional ) |
Paper material:50-70g/m2 |
|
|
Unfolded size range:(80-300)mm*(70-210)mm |
||
|
Folded size range: 1-4 folded(70-210)mm X(20-40)mm |
||
|
Box paper material: |
250~450g/m2 |
250~450g/m2 |
|
Main motor power: |
1.5 kw |
1.5 kw |
|
Power supply: |
380V 50Hz(220V 60 Hz) |
380V 50Hz(220V 60 Hz) |
|
Work pressure: |
0.5Mpa,0.6m³/h |
0.5Mpa,0.6m³/h |
|
Compressed gas consumption: |
≥0.9m³3/h |
≥0.9m³3/h |
|
Dimensions(length×width×height): |
3700(L)×1500(W)×1900mm(H) |
3700(L)×1500(W)×1900mm(H) |
|
Machine weight: |
18000 Kg |
1800 Kg |
Food service cutlery: Primary application. Handles metal/plastic utensils with napkins and condiment sachets in one cycle.
Packaged snacks: Works with wrapped biscuits, wafer bars, and portioned condiments — provided the product maintains shape under lateral push.
Pharmaceuticals & cosmetics: Not recommended. Our continuous-motion line (KDZ series) supports leaflet insertion, embossing, and tamper-evident sealing. The KDZ lacks these features by design.
General hardware / household goods: Feasible for flat-packed items like paper rolls, small tool sets, or plastic kitchenware — but we require sample testing to confirm carton stiffness compatibility.
We take packaging and shipping seriously because a damaged machine on arrival is a bad start for any relationship.
|
Shipping Item |
Details |
|
Packaging method |
Export-worthy wooden crate, reinforced with internal bracing and rust-preventive VCI film. Machine anchored to crate base to prevent shifting during transit |
|
Protection |
Stainless steel surfaces covered with protective film; sensitive components (PLC, touchscreen, sensors) padded with foam inserts; loose parts and manuals packed in a separate sealed box inside the main crate |
|
Container type |
Typically 20ft or 40ft GP container for FCL shipments. LCL consolidation available but we recommend FCL to minimize handling risks |
|
Port of loading |
Shanghai or Ningbo, China – major shipping lines with regular sailings worldwide |
|
Delivery lead time |
30–45 days after order confirmation and deposit receipt (depending on current production schedule and customization level) |
|
Shipping documentation |
Commercial invoice, packing list, bill of lading, certificate of origin, CE declaration, and ISO certificate copy – all provided prior to shipment or with the machine |
|
Inspection before shipping |
We require a factory acceptance test (FAT) with your actual samples before crating. You're welcome to send your own inspector or we can arrange a live video inspection |
|
Insurance |
We offer marine insurance as an optional add-on. Otherwise, all shipments are FOB Shanghai/Ningbo – risk transfers to buyer after loading |
Southeast Asia: 7–14 days sea freight
Europe (EU): 25–35 days sea freight
North America: 20–30 days sea freight
South America: 30–45 days sea freight
Middle East / Africa: 25–40 days sea freight
