What ensures long-term, reliable performance? It's dependable leading brand electrical components. Our Automatic Intermittent cartoning machines are equipped with Siemens PLCs and Schneider frequency converters. Should customers have specific brand requirements for electrical components, we can accommodate those requests as well. While maintaining high machine quality, we offer flexible configurations to provide customers with equipment that delivers superior cost-effectiveness.

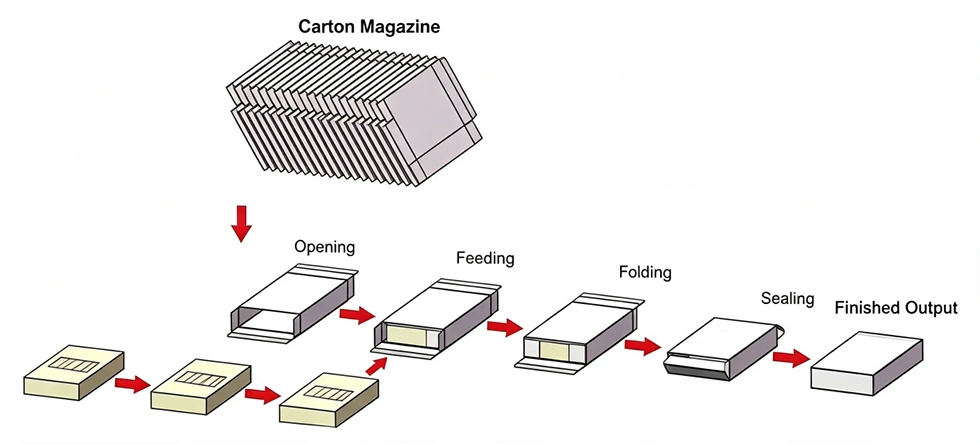

It was independently developed by the KEDE Machinery Technology team. Unlike continuous cartoners , this equipment adopts an intermittent rotating box-holding structure, and completes the processes of box suction, product feeding, box folding, sealing, and product output in segmented steps.
All the manufacturing processes of the machine are completed independently by our factory. It is specially designed for small-sized box packaging. It can automatically complete the functions of box opening, manual/automatic feeding, instruction book insertion, box sealing, and counting. It can be paired with upstream filling machines, blister packaging machines, downstream case-filling machines, stackers, and form a fully automatic packaging production line.

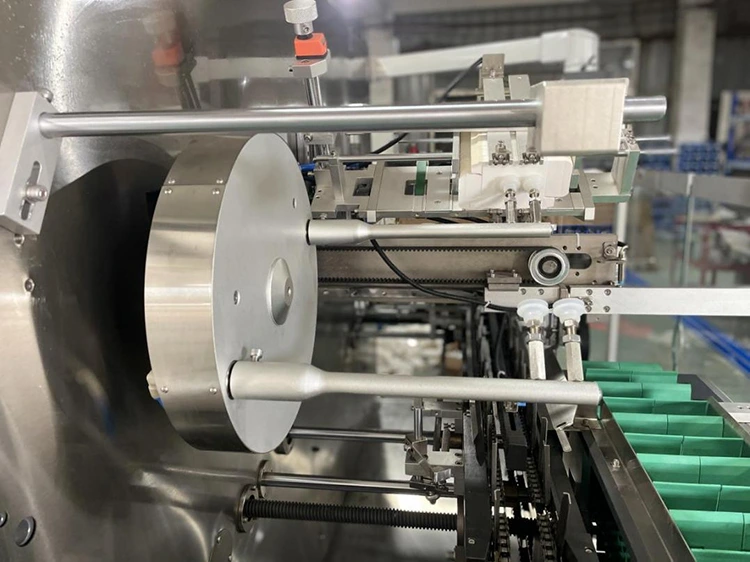

Equipped with rotary disk box sucker structure, the vacuum suction cup grabs cartons evenly without deformation, greatly improving box opening stability and operating speed up to 60 boxes per minute. Compared with linear suction box structures,
this cartoning machine reduces carton jamming failure rate by over 40%.

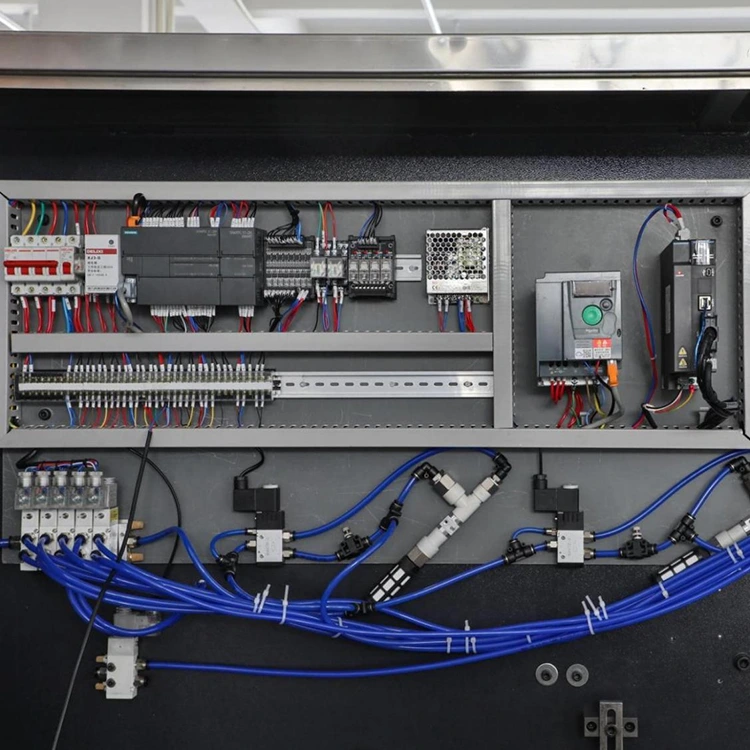

All core electric parts adopt world-famous brands to guarantee long-term stable operation, no frequent breakdowns:
Siemens PLC + Siemens touch screen for intelligent control
Schneider frequency converter, Delta servo motor & driver
Delixi safety electrical components, Stark solenoid valves
The man-machine interface supports real-time speed display, finished product counting, automatic fault alarm and one-click parameter adjustment, easy for new operators to master within 30 minutes.

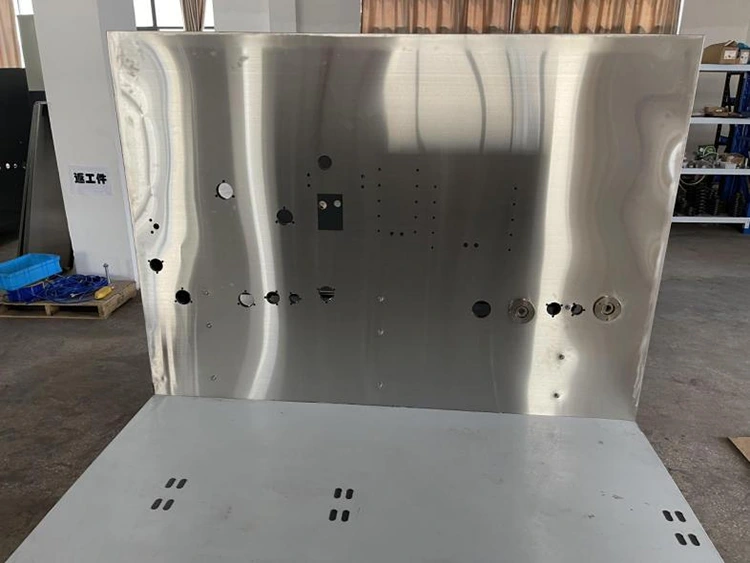

Whole machine rack adopts heavy thick metal with internal powder coating to avoid rust and vibration during long-hour operation; outer casing all 304 stainless steel, anti-corrosion, easy to clean, meets food & pharmaceutical hygiene standards.
Complete full safety cover, dual emergency stop switches, automatic material missing detection function: alarm and pause when cartons/products are insufficient, eliminate empty box waste.
Customized pushing mold according to customers’ actual product size, compatible with various small goods packaging.

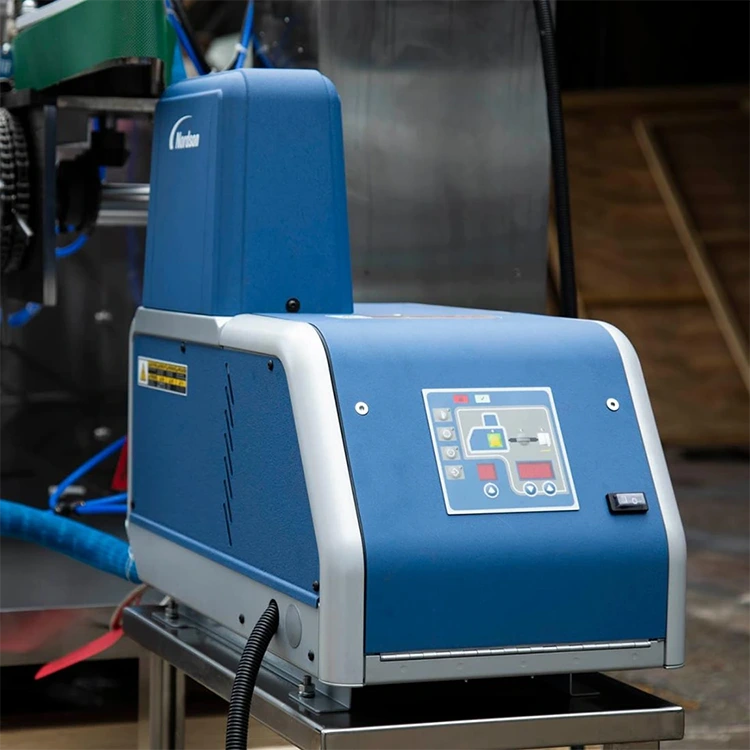

Optional two-sprayer hot melt glue system for fully sealed carton packaging; machine size, carton processing range can be adjusted for special box sizes. It supports matching blister machines, filling machines, pillow packaging machines to build integrated automatic packaging lines.
|
Item |
Automatic Intermittent cartoning machine Specification |
|
Model |
KDZ-130 |
|
Working Speed |
30–60 boxes per minute |
|
Carton Size (LWH) |
70–250mm × 25–100mm × 12–90mm |
|
Applicable Carton Paper |
250–450g/㎡ cardboard |
|
Main Motor Power |
1.5kw |
|
Standard Power Supply |
380V 50Hz (custom voltage available) |
|
Working Air Pressure |
0.5Mpa |
|
Air Consumption |
0.5–0.8 m³/h, matched with 3kw air compressor |
|
Overall Dimension |
3700(L) × 1500(W) × 1900(H) mm |
|
Net Weight |
2000kg |
|
Optional Accessory |
OSD-812A Double Hot Melt Glue Sprayer |
|
Warranty Period |
1 year full machine warranty |
Our KDZ-130 Automatic Intermittent cartoning machine is widely exported to Southeast Asia, Europe, Middle East and South America, serving manufacturers in these industries:
Pharmaceutical industry: Blister medicine plates, capsules, ointment tubes, medical gloves carton packing
Daily chemical: Facial masks, hand cream, cosmetics, toothpaste small box packaging
Food industry: Small snacks, condiment packets, coffee sachets, candy boxes
Hardware & electronics: Small electronic parts, hardware accessories, battery small cartons
WENZHOU KEDE MACHINERY TECHNOLOGY CO., LTD. founded in 2010, is a professional packaging machinery manufacturer with 15 years R&D and production experience, covering a 2,000㎡ factory workshop with independent metal processing, assembly and testing workshops. All machines pass full running test for 48 hours before delivery to eliminate hidden faults.
All electrical components have CE certification; whole machine meets international mechanical safety standards.
Each batch of KDZ-130 machines undergoes strict inspection: carton speed test, air tightness test, continuous operation aging test, electrical safety detection, and issue factory inspection report.
We attend global packaging industry exhibitions every year, cooperate with hundreds of overseas packaging distributors, our cartoning machines have been shipped to more than 40 countries worldwide.
1.More stable intermittent suction box structure: Most cheap cartoners use thin iron racks and ordinary plastic suction cups, easy to wear and jam cartons; our rotary stainless steel sucker and thickened frame ensure long-term stable production.
2.Famous brand full electrical configuration: Many suppliers use domestic low-cost electrical parts with short service life; we standard equip Siemens & Schneider international brand components, reduce maintenance frequency by over 70%.
3.One-stop customized service: We can adjust mold, carton range, add hot melt glue spraying, automatic feeding mechanism according to your products, no extra expensive customized fees.
4.Complete after-sales support: 1-year free warranty for whole machine, lifetime paid spare parts supply, online remote troubleshooting within 2 hours, overseas engineer door-to-door installation service available.
● A versatile automatic cartoning machine for pharmaceuticals, cosmetics, food, and household products
● PLC + HMI touchscreen control with recipe storage and fault diagnostics
●Stainless steel construction suitable for GMP-grade hygiene requirements
● Optional coder, leaflet folder, hot-melt glue unit, and custom infeed configurations
●Factory-direct wholesale pricing from a China-based manufacturer
●Full documentation, video tutorials, and remote support
●Export crating and global shipping from Shanghai/Ningbo
● CE and ISO-certified quality with transparent pre-shipment sample testing
Contact KEDE today — tell us your pouch dimensions, carton size, and target output speed. We'll send you a proposal with factory-direct pricing, lead time, and recommended configuration within 48 hours.
