The core electrical components of the Automatic Multifunctional Horizontal Cartoning Machine are selected from brands such as Siemens and Schneider.The entire frame of the machine is made of stainless steel.
The equipment comes with a material shortage detection system, which can reduce material waste.You can also choose to equip a hot melt glue spraying system.
We support adjusting the size of the paper boxes according to your needs and provide customized services.
The entire machine offers a one-year global warranty.
Before leaving the factory, the machine will undergo complete testing in the factory before being dispatched.

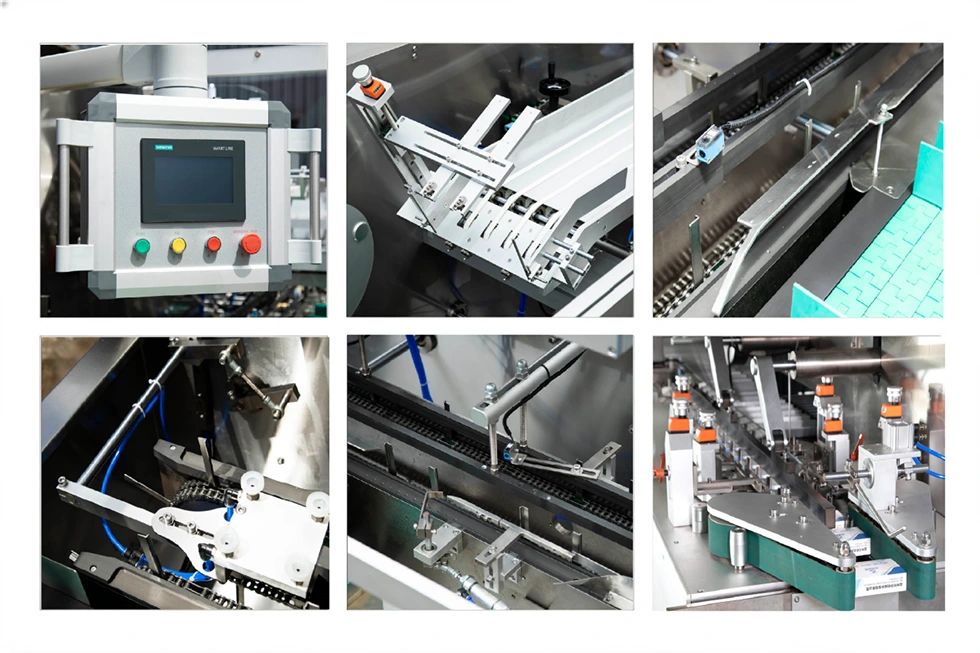

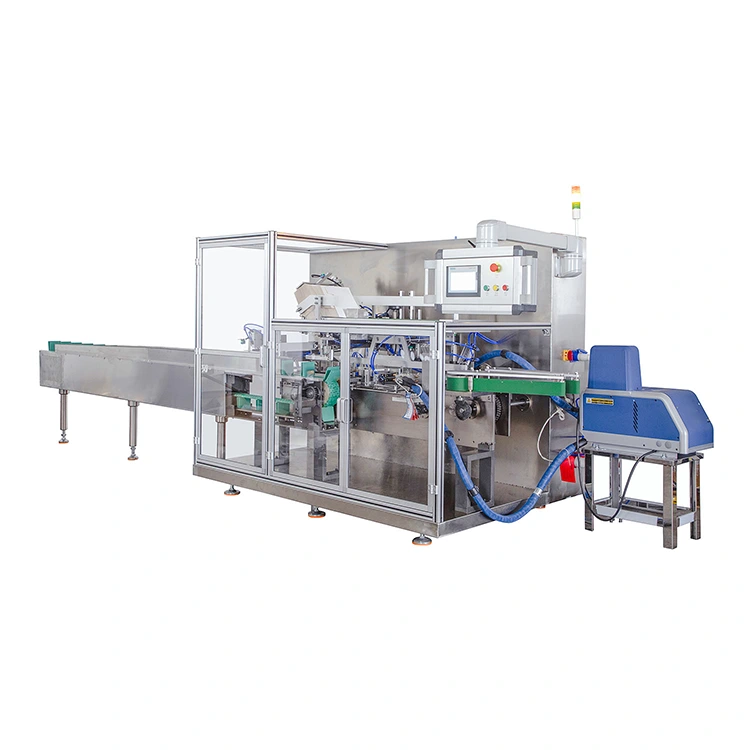

The Automatic Multifunctional Horizontal Cartoning Machine is engineered with practical production needs in mind:
PLC + HMI Control – User-friendly interface for parameter setting, real-time monitoring, failure display, speed readout, and finished product count.
Frequency Speed Control – Adjustable speed to match upstream/downstream line conditions.
Automatic Detection Functions – Includes drug version detection, manual leakage check, and waiting elimination to reduce downtime.
Rotary Disk Box Sucker – Ensures smoother carton pickup and higher speed stability compared to traditional sucker designs.
Long Conveyor + Storage Plate – Allows manual feeding with buffer capacity, reducing operator fatigue.
Custom Pusher – Tailored to your specific product shape for accurate loading.
Heavy-duty Rack – Powder-coated inside frame + 304 stainless steel exterior cladding for durability and hygiene.
The Automatic Multifunctional Horizontal Cartoning Machine handles a wide range of products and carton types:
Pharma: Blister packs, vials, ampoules, syringes, pill bottles
Cosmetics: Cream boxes, perfume cartons, multi-item sets
Food: Tea bags, sachets, candy boxes
Industrial: Small hardware, batteries, electronic components
|
Model: |
KDZ-130 Automatic Multifunctional Horizontal Cartoning Machine |
KDZ-80 Automatic Multifunctional Horizontal Cartoning Machine |
|
Speed: |
≤80boxes/min |
≤80boxes/min |
|
Boxsize(L*W*H): |
(70-250)*(25-100)*(12-90)mm |
(70-150)mm*(25-100)mm *(12-80)mm |
|
Instruction book:(optional ) |
Paper material:50-70g/m2 |
|
|
Unfolded size range:(80-300)mm*(70-210)mm |
||
|
Folded size range: 1-4 folded(70-210)mm X(20-40)mm |
||
|
Box paper material: |
250~450g/m2 |
250~450g/m2 |
|
Main motor power: |
1.5 kw |
1.5 kw |
|
Power supply: |
380V 50Hz(220V 60 Hz) |
380V 50Hz(220V 60 Hz) |
|
Work pressure: |
0.5Mpa,0.6m³/h |
0.5Mpa,0.6m³/h |
|
Compressed gas consumption: |
≥0.9m³3/h |
≥0.9m³3/h |
|
Dimensions(length×width×height): |
3700(L)×1500(W)×1900mm(H) |
3700(L)×1500(W)×1900mm(H) |
|
Machine weight: |
18000 Kg |
1800 Kg |
|
Special Size Customization |
||
Motion Type: Intermittent movement. Precise, stable and smooth running.
Key Components: Siemens, Schneider, Delta standard parts. Nordson optional. Reliable performance.
Structure: Heavy-duty frame + 304 stainless steel. Durable, easy to sanitize. Flexibility: Custom carton sizes and custom pusher design available.
Cost Performance: Mid-speed operation. High-quality components at competitive prices.
We know that packaging machinery is only as good as the support behind it. Here's what you get with every Automatic Multifunctional Horizontal Cartoning Machine:
|
Service Item |
What We Provide |
|
Installation guidance |
Detailed installation drawings and step-by-step written instructions in English. Optional on-site installation supervision available for large orders |
|
Video tutorials |
Full machine operation video series – covering startup, daily operation, changeover, cleaning, and basic fault diagnosis. Accessible via QR code on the machine or download link provided with shipment |
|
User manual |
Comprehensive operation and maintenance manual (English) with exploded-view diagrams, parts list, lubrication schedule, and troubleshooting flowcharts |
|
Remote diagnostics |
PLC/HMI supports remote connection for troubleshooting. Our technicians can log in (with your permission) to check parameters, review alarm history, and guide your team through adjustments in real time |
|
Spare parts support |
Recommended spare parts list provided at purchase. Commonly worn items (sealing elements, pusher fingers, suction cups, belts) stocked at our warehouse for rapid dispatch |
|
Warranty |
12 months from installation date or 14 months from shipment, whichever comes first. Covers manufacturing defects in materials and workmanship |
|
Response time |
Email or WhatsApp inquiry – response within 24 hours (business days). Critical production-stopping issues – technician contact within 4 hours via scheduled remote session |
|
Training |
Free basic operator training at our factory during machine inspection prior to shipment. Advanced training available on-site (fee applies, depending on location) |
A: Standard carton range L70-250mm, W25-100mm, H12-90mm. If your carton exceeds this size, we can customize the machine mold and mechanical structure for your special box.
A: The machine needs 0.5Mpa working air pressure, air consumption 0.5-0.8m³/h, we recommend you equip a 3kw industrial air compressor.
A: Yes. KDZ-130 can be connected with upstream blister packing, filling, pillow packaging equipment to form full automatic packaging line, our technical team can design connection layout for free.
A: No. The double spraye is optional accessory with extra cost
A: Standard power supply is 380V 50Hz three-phase. If your factory uses 220V, 415V or 60Hz power, inform us when placing order for customized motor and electrical system.
A: 60 working days after receiving your 30% T/T deposit. For urgent orders, we can arrange priority production after communication.
