According to customer requirements, functions such as coding, detection, weighing, kicking waste, and spraying glue can be added. Our dear customers all around the world, you are welcome to buy that from our factory in China.

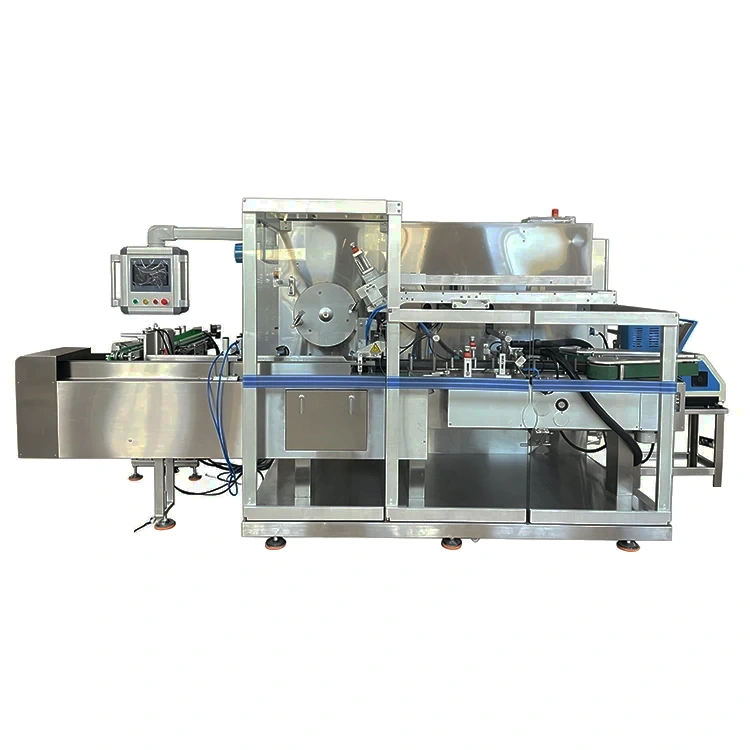

The Automatic Food Cartoning Machine is a kind of packaging mechanical equipment that can automatically place items into boxes and complete the box closing action.
The automatic cartoning process reduces manual intervention and supports continuous packaging operations. Coordinated feeding, product pushing and carton handling help maintain a stable production rhythm for demanding packaging applications.
Advanced feeding mechanisms and photoelectric detection systems help accurately position products before they are loaded into cartons. This reduces misfeeds, improves packaging consistency and helps minimize product and packaging material waste.
The machine can be configured for different product and carton specifications, making it suitable for production environments where packaging formats change frequently. Quick-change components or molds can be incorporated according to the machine configuration to simplify format changeover.
Automated carton forming and product loading significantly reduce repetitive manual operations compared with traditional hand packing. This can help lower labor requirements while improving consistency throughout the packaging process.
The machine can be manufactured with stainless steel components and materials suitable for the intended packaging environment. For pharmaceutical, food and other hygiene-sensitive applications, the equipment configuration can be adapted to meet relevant production and cleanliness requirements.
A PLC-based control system coordinates the main operating functions of the machine and provides a straightforward interface for parameter adjustment and production monitoring. Depending on the configuration, alarm functions and remote technical support can also assist with equipment management and troubleshooting.
The cartoning machine can operate as an independent packaging unit or be integrated with upstream and downstream equipment. It can be configured to connect with feeding, labeling, inspection, sealing or other packaging equipment to form a more complete automated production line.
The machine can be configured for different cartoning processes and product requirements. Optional functions such as date and batch number printing, leaflet or instruction manual insertion, and other packaging modules can be incorporated according to the application.
Technical Parameters:
|
Model: |
KDZ-130 |
KDZ-80 |
|
Speed: |
≤80boxes/min |
≤80boxes/min |
|
Boxsize(L*W*H): |
(70-250)*(25-100)*(12-90)mm |
(70-150)mm*(25-100)mm *(12-80)mm |
|
Instruction book:(optional ) |
Paper material:50-70g/m2 |
|
|
Unfolded size range:(80-300)mm*(70-210)mm |
||
|
Folded size range: 1-4 folded(70-210)mm X(20-40)mm |
||
|
Box paper material: |
250~450g/m2 |
250~450g/m2 |
|
Main motor power: |
1.5 kw |
1.5 kw |
|
Power supply: |
380V 50Hz(220V 60 Hz) |
380V 50Hz(220V 60 Hz) |
|
Work pressure: |
0.5Mpa,0.6m³/h |
0.5Mpa,0.6m³/h |
|
Compressed gas consumption: |
≥0.9m³3/h |
≥0.9m³3/h |
|
Dimensions(length×width×height): |
3700(L)×1500(W)×1900mm(H) |
3700(L)×1500(W)×1900mm(H) |
|
Machine weight: |
18000 Kg |
1800 Kg |
|
Special Size Customization |
||
The application of the Automatic Food Cartoning Machine is very extensive. It can be used for packaging various products, including but not limited to medicines, foods, cosmetics, daily necessities, etc. The cartoning machine can be customized according to different products and packaging requirements to meet the demands of various production packaging.
Food & Beverage Industry – Tea Bags, Sachets, Confectionery & Snacks
In food packaging, speed and hygiene are critical. The KDZ-130 strikes a balance between stable output and sanitary design.
Common Applications:
●Tea bags and tea sachets
●Candy, chocolate, and confectionery
●Individual snack bars
●Coffee capsules and seasoning sachets
The heavy-duty machine weight (2,000 kg) ensures stability during operation, reducing vibration and maintaining consistent carton handling even with high-quality carton board. The 304 stainless steel exterior simplifies cleaning and resists corrosion from food-related moisture. The machine supports integration with upstream weighers or bag-making equipment. The speed range of 30–60 boxes per minute is well-suited for mid-speed food production lines, while the frequency speed control allows operators to adjust output to match upstream filling machines. The air consumption of 0.5–0.8 m³/h is efficient, requiring only a standard 3 kW air compressor – a practical consideration for food plants with limited utility capacity.
●PLC and HMI control for easy parameter adjustment
●Frequency speed control to match upstream line conditions
●Automatic failure display and finished product count
●Optional date/lot coding for traceability
●Tuck-in closure eliminates glue contamination risk for food products
An Indonesian chocolate manufacturer previously relied fully on manual carton packing. Manual operation brought unstable output and frequent packaging defects.
The factory upgraded to our KDZ-130 intermittent cartoning machine. Automated packing greatly boosted production efficiency and cut faulty products.
The machine runs chocolate boxes steadily at 52 cartons per minute. The rejection rate is kept below 0.4%.
Multiple product recipes can be saved on the HMI touchscreen. Operators finish product size changeovers within 30 minutes.
Constructed with 304 stainless steel, the machine complies with food hygiene standards and simplifies daily cleaning work.
We deliver responsive, expert and thoughtful after-sales support within 24 hours for all clients. Our goal is to guarantee stable operation, full functionality and safe performance of your equipment.
We built a comprehensive after-sales framework. The team consists of an after-sales center, local service outlets, field service engineers and dedicated customer support staff.
We offer standardized maintenance arrangements covering warranty duration, covered warranty items, service charge standards and maintenance specifications.
We provide systematic professional training. The training covers learning targets, course content, teaching approaches, as well as assessment and testing standards.
