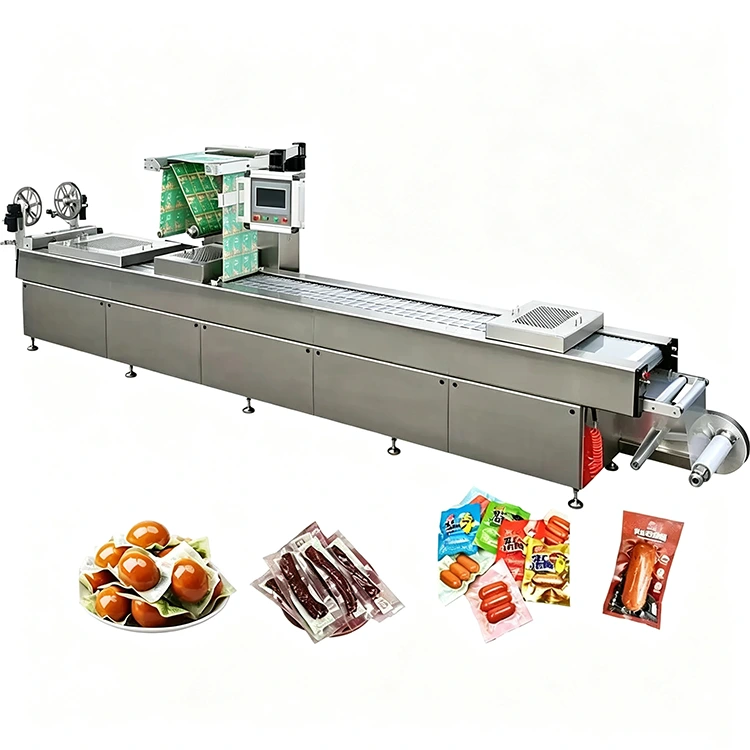

The Full Auto Stretch Film Vacuum Packing Machine combines film forming and vacuum packaging in one continuous process.
The lower film is heated and formed against a mold to create the product cavity. After loading, the upper film is fed over the cavity and aligned before the vacuum and sealing cycle. The finished pack is then cut from the web, while the edge film can be collected for recycling.
The process is:
Lower film forming → Product loading → Upper film feeding → Vacuum / gas flushing → Heat sealing → Cutting → Discharge
Because the package is formed directly from roll film, there is no need to prepare individual bags before production.
The lower film passes through a heating section before entering the forming station. A replaceable mold creates the cavity according to the product shape.
Different mold designs can be used for shallow or deeper products, including regular and irregular cavity shapes.
The available models are differentiated mainly by working width:
|
Model |
Upper Film Width |
Lower Film Width |
Forming Size |
Vacuum Pump |
Power |
|
KDZ-320 |
294 mm |
333 mm |
284 × 272 mm |
100 m³/h |
10 kW |
|
KDZ-420 |
394 mm |
422 mm |
384 × 372 mm |
200 m³/h |
12.5 kW |
|
KDZ-520 |
494 mm |
522 mm |
484 × 572 mm* |
200 m³/h |
16.5 kW |
* The supplied specification should be confirmed with KEDE before publication, as the listed forming size may require verification.
|
Parameter |
KDZ-320 |
KDZ-420 |
KDZ-520 |
|
Machine Dimensions |
4000 × 800 × 1760 mm |
6000 × 1000 × 1860 mm |
7350 × 1100 × 1860 mm |
|
Machine Weight |
1,200 kg |
1,800 kg |
2,200 kg |
After product loading, the formed cavity is closed with the upper film.
The vacuum system removes air from the package before heat sealing. For products where a modified atmosphere is preferred, nitrogen or a nitrogen/carbon dioxide mixture can be introduced before sealing.
The sealing section uses independently controlled heating zones to match different film structures and sealing requirements. Suitable film combinations should be confirmed according to the actual product and process.
For products containing liquid, an appropriate filtration or liquid-protection configuration should be considered to reduce the risk of liquid entering the vacuum system.
The Full Auto Stretch Film Vacuum Packing Machine is particularly suitable for food packaging where the product needs to remain visible after packaging.
Typical applications include meat products, bacon, ham, preserved foods, eggs, seafood, tofu products, corn, snacks and other chilled or prepared foods.
The transparent upper film can show the product directly on the retail shelf, while printed films can be used when stronger branding or package graphics are required.
The machine can also be used for selected medical supplies, hardware components and agricultural products when vacuum or moisture-resistant packaging is required.
For products that are highly sensitive to light and require aluminum film on both sides, a double-sided aluminum film thermoforming configuration is more appropriate.
The Full Auto Stretch Film Vacuum Packing Machine separates the functions of the bottom and upper films, so the two films do not necessarily need to use the same structure.
The bottom film needs to meet the forming requirements of the cavity, including heating, stretching and product depth.
The upper film can be selected according to sealing, appearance and barrier requirements. Transparent printed film is suitable when product visibility is important; metallized or aluminum-based film can be considered when higher light or barrier protection is required.
Film compatibility should always be confirmed through sample testing before final machine configuration.
Film feeding, forming, vacuuming, sealing and cutting are coordinated through the machine's control system. The PLC touchscreen allows operators to adjust key parameters such as film feeding, vacuum time and sealing temperature.
Photoelectric alignment helps maintain the position of printed upper film during production.
The finished packs are separated automatically after sealing, and edge material can be collected by the waste-film winding system.
Automatic feeding, coding, metal detection, checkweighing and downstream cartoning can also be integrated when required.
The KDZ series can be configured with:
● Automatic product feeding
● Mechanical or robotic loading
● Gas flushing
● Inkjet coding
● Metal detection
● Checkweighing
● Waste-film winding
● Downstream conveying and cartoning
The actual configuration depends on the product, film structure and production process.
The Machine uses single-sided stretch forming. The lower film is heated and formed into the product cavity, while the upper film remains flat.
KDZ uses a formed lower film with a separate upper cover film. The LSM series forms both upper and lower aluminum composite films. KDZ therefore offers greater flexibility in upper-film selection and is well suited to products requiring visible packaging.
Yes. Transparent and printed films can be selected when product visibility or retail presentation is required.
Yes. Gas flushing can be integrated according to the product and packaging requirements.
Yes. The forming mold can be made according to the product dimensions and required cavity shape.
The main considerations are product size, cavity layout, film width and required production capacity. KEDE can recommend the model after reviewing the product and packaging specifications.
